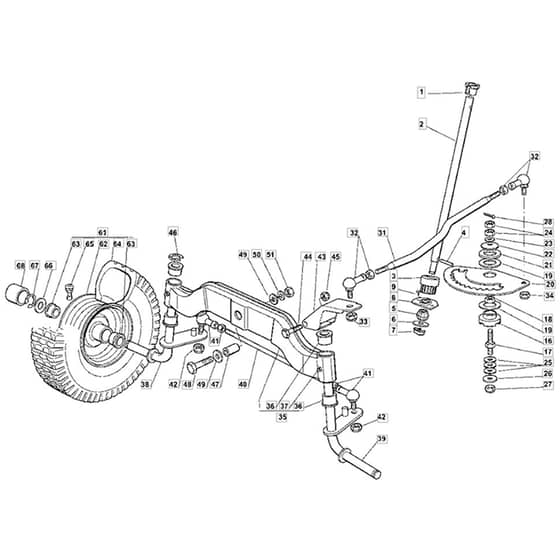

1440H - 2007 - 13-2684-12 - Mountfield Ride On Mower Steering Diagram

Name: 1440H - 2007 - 13-2684-12 - Mountfield Ride On Mower Steering Diagram
SKU: 1440h_13_2684_12_steering-group
Price: 1.16 GBP
Availability: InStock

Part No. 1440h_13_2684_12_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440H - 2007 - 13-2684-12 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 1440H Parts Diagram

Product Name - 1440H

Model Year - 2007

Model Type -

Art.N - 13-2684-12

Engine Model -

	Part No.	Details
1	MO325038004/0 Available to backorder	Bushing	£2.40 £2.00
3	MO125570000/2 Available to backorder	Pinion	£12.80 £10.67
4	MO112622650/0 Available to backorder	Dowel Pin	£1.79 £1.49
5	MO325743000/0 In stock	Joint	£2.69 £2.24
6	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
7	MO112436030/0 In stock	Plate	£1.84 £1.53
9	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
16	MO125040617/0 Available to backorder	Bushing	£10.72 £8.93
17	MO125510065/3 Available to backorder	Pin	£10.30 £8.58
18	MO112295200/0 In stock	Nut	£1.39 £1.16
19	MO325670012/0 Available to backorder	Washer	£2.40 £2.00
20	MO325735507/0 Available to backorder	Steering Sector	£69.68 £58.07
68	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
