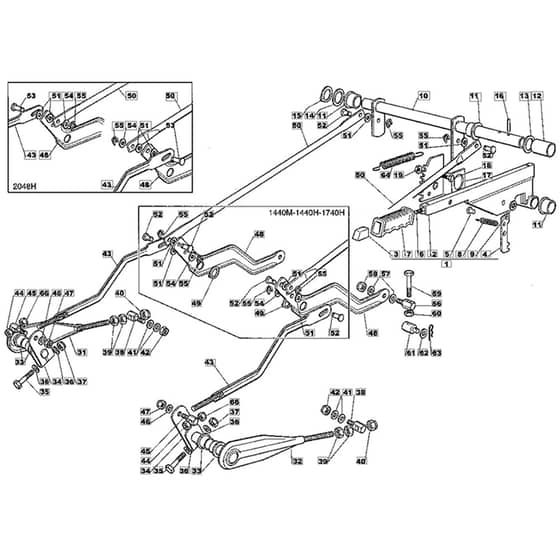

1440H - 2007 - 13-2684-12 - Mountfield Ride On Mower Deck Lifting Diagram

Name: 1440H - 2007 - 13-2684-12 - Mountfield Ride On Mower Deck Lifting Diagram
SKU: 1440h_13_2684_12_deck_lifting-group
Price: 1.16 GBP
Availability: InStock

Part No. 1440h_13_2684_12_deck_lifting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440H - 2007 - 13-2684-12 - Mountfield Ride On Mower Deck Lifting Diagram

Description

Mountfield 1440H Parts Diagram

Product Name - 1440H

Model Year - 2007

Model Type -

Art.N - 13-2684-12

Engine Model -

	Part No.	Details
1	MO382300002/1 Available to backorder	Lever Pos 2 - 9 incl. _ T40M . T40H	£60.54 £50.45
2	MO382318139/1 Available to backorder	Deck Lifting Lever	£40.82 £34.02
3	MO125605000/1 Available to backorder	Button	£2.24 £1.87
4	MO325470901/1 Available to backorder	Dog	£11.54 £9.62
5	MO25510011/0 Available to backorder	Pin	£1.55 £1.29
5	MO125510011/1 Available to backorder	Pin	£1.55 £1.29
6	MO125033002/1 Available to backorder	Push Rod	£4.24 £3.53
7	MO125394504/1 Available to backorder	Knob	£2.53 £2.11
8	MO125430208/1 Available to backorder	Spring	£3.52 £2.93
9	MO112604899/0 In stock	Locking Washer	£1.55 £1.29
10	MO382000479/2 Available to backorder	Axle	£40.40 £33.67
11	MO122034523/0 Available to backorder	Bushing	£1.55 £1.29
12	MO125160025/1 Available to backorder	Spacer	£6.19 £5.16
13	MO322672153/0 Available to backorder	Antifriction Washer	£1.55 £1.29
14	MO112521410/0 Available to backorder	Washer	£1.92 £1.60
15	MO112609260/0 In stock	Circlip	£1.84 £1.53
16	MO112620310/0 Available to backorder	Pin	£1.97 £1.64
16	MO112620206/0 Available to backorder	Pin	£1.39 £1.16
18	MO9997-0816-16 In stock	Screw	£1.55 £1.29
18	MO112792611/0 In stock	Screw	£1.55 £1.29
19	MO112293201/0 In stock	Nut	£1.70 £1.42
66	MO112293200/0 In stock	Nut M6M M8	£1.55 £1.29
