1440H - 2007 - 13-2675-11 - Mountfield Ride On Mower B&S Engine Diagram

Description

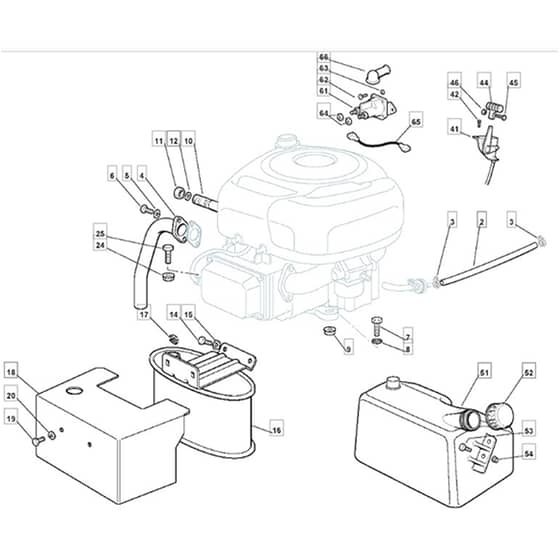

Mountfield 1440H Parts Diagram

Product Name - 1440H

Model Year - 2007

Model Type - TS 102 Hydro

Art.N - 13-2675-11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325869016/1 Available to backorder	Fuel Pipe L300	£8.02 £6.68
3	MO118375062/0 Available to backorder	Fair Led	£1.82 £1.52
4	MO118738224/0 Available to backorder	Exhaust Pipe	£40.68 £33.90
5	MO112583500/0 In stock	Grower	£1.55 £1.29
6	MO112735530/0 Available to backorder	Screw	£1.82 £1.52
7	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
8	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
9	MO112154210/0 In stock	Nut	£1.69 £1.41
10	MO125598050/0 Available to backorder	Oil Discharge Extension	£8.02 £6.68
66	MO118564861/2 In stock	Red Rubber Terminal Cover	£6.76 £5.63
