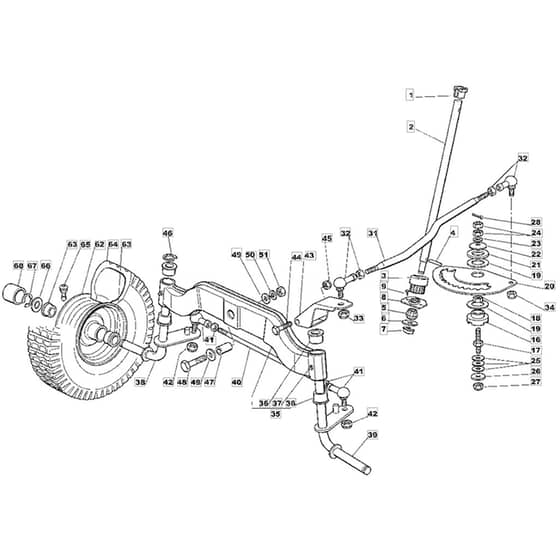

1440H - 2006 - 13-2684-11 - Mountfield Ride On Mower Steering Diagram

Name: 1440H - 2006 - 13-2684-11 - Mountfield Ride On Mower Steering Diagram
SKU: 1440h_13_2684_11_steering-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440H - 2006 - 13-2684-11 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 1440H Parts Diagram

Product Name - 1440H

Model Year - 2006

Model Type -

Art.N - 13-2684-11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325038004/0 Available to backorder	Bushing	£2.40 £2.00
2	MO125520005/0 Available to backorder	Steering Column	£28.01 £23.34
3	MO125570000/2 Available to backorder	Steering Pinion	£12.82 £10.68
4	MO9595-0262-00 In stock	Locating Pin	£1.69 £1.41
5	MO325743000/0 Available to backorder	Joint	£2.68 £2.23
6	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
7	MO112436030/0 In stock	Lock Plate	£1.82 £1.52
8	MO325785213/1 Available to backorder	Support	£2.40 £2.00
9	MO112729601/1 Available to backorder	Screw	£1.48 £1.23
16	MO125040617/0 Available to backorder	Bushing	£10.70 £8.92
17	MO125510065/3 Available to backorder	Stud Bolt	£10.31 £8.59
18	MO112295200/0 In stock	Nut	£1.40 £1.17
68	MO122110230/0 In stock	Hub Cap	£1.55 £1.29
