1440H - 2006 - 13-2684-11 - Mountfield Ride On Mower Grasscatcher Diagram

Name: 1440H - 2006 - 13-2684-11 - Mountfield Ride On Mower Grasscatcher Diagram
SKU: 1440h_13_2684_11_grasscatcher-group
Price: 1.16 GBP
Availability: InStock

Part No. 1440h_13_2684_11_grasscatcher-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

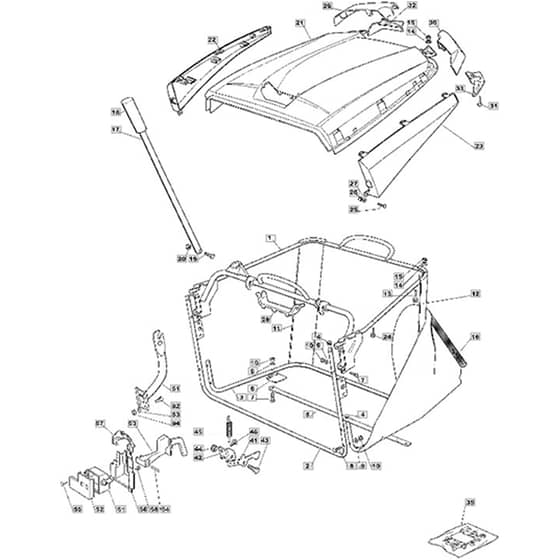

1440H - 2006 - 13-2684-11 - Mountfield Ride On Mower Grasscatcher Diagram

Description

Mountfield 1440H Parts Diagram

Product Name - 1440H

Model Year - 2006

Model Type -

Art.N - 13-2684-11

Engine Model -

	Part No.	Details
1	MO382800079/1 Available to backorder	Frame-Upper	£190.03 £158.36
2	MO382800089/1 Available to backorder	Front Grassbox Frame	£78.74 £65.62
4	MO118566110/0 Available to backorder	Push Rod	£1.55 £1.29
5	MO382650043/0 Available to backorder	Lower Stiffening	£20.77 £17.31
6	MO325547131/0 Available to backorder	Plate	£3.66 £3.05
8	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
11	MO325032013/0 Available to backorder	Right Angular Support	£15.84 £13.20
12	MO325032015/0 Available to backorder	Left Angular Support	£15.84 £13.20
13	MO112689500/0 Available to backorder	Screw	£1.63 £1.36
16	MO182105980/0 Available to backorder	Grasscatcher	£154.86 £129.05
17	MO125869029/1 Available to backorder	Grasscatcher Lifting Tube	£29.57 £24.64
18	MO125394508/0 Available to backorder	Knob	£5.06 £4.22
19	MO112674550/0 Available to backorder	Screw	£1.63 £1.36
21	MO325110302/0 Available to backorder	Red Grass-Catcher Cover	£167.54 £139.62
23	MO382110254/0 Available to backorder	Cover-Lh	£50.69 £42.24
24	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
25	MO112815220/0 Available to backorder	Screw	£1.63 £1.36
26	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
27	MO112154510/0 In stock	Nut	£1.55 £1.29
27	MO112521360/0 In stock	Washer	£1.55 £1.29
28	MO325394009/0 Available to backorder	Handle Cover	£36.59 £30.49
30	MO382110289/0 Available to backorder	Side Cover Left	£36.59 £30.49
31	MO112735402/0 In stock	Screw	£1.55 £1.29
35	MO382180037/3 Available to backorder	Outfit. Screws Contains S	£67.57 £56.31
41	MO325774315/1 Available to backorder	Bracket	£3.92 £3.27
43	MO125510080/2 Available to backorder	Pin	£1.39 £1.16
44	MO112292102/0 In stock	Nut	£1.70 £1.42
45	MO125430210/1 Available to backorder	Brake Spring	£2.82 £2.35
46	MO112735122/1 Available to backorder	Screw	£1.63 £1.36
51	MO125600041/0 Available to backorder	Grassc.Full Micro Protection Tcj-F	£3.90 £3.25
52	MO125600042/0 Available to backorder	Grasscatcher Micro Prot Cover	£7.62 £6.35
53	MO125318124/0 Available to backorder	Full Grassc. Microswtich Cover	£1.97 £1.64
54	MO112400030/0 Available to backorder	Pin	£1.84 £1.53
64	MO112293201/0 In stock	Use 112293201.0	£1.70 £1.42
