1440H - 2006 - 13-2684-11 - Mountfield Ride On Mower Body Diagram

Name: 1440H - 2006 - 13-2684-11 - Mountfield Ride On Mower Body Diagram
SKU: 1440h_13_2684_11_body-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

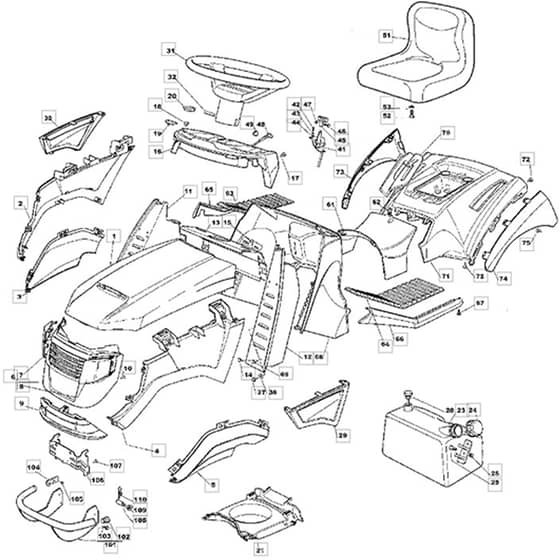

1440H - 2006 - 13-2684-11 - Mountfield Ride On Mower Body Diagram

Description

Mountfield 1440H Parts Diagram

Product Name - 1440H

Model Year - 2006

Model Type -

Art.N - 13-2684-11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
4	MO382394615/0 Available to backorder	Hood-Upper Lh. Red	£87.16 £72.63
6	MO382394613/0 Available to backorder	Hood-Front. Black Pos 7 - 8 incl.	£80.58 £67.15
7	MO325410876/0 Available to backorder	Grill-Rh	£8.80 £7.33
8	MO325410877/0 Available to backorder	Grill-Lh	£8.80 £7.33
9	MO325076870/1 Available to backorder	Hood-Front Lower. Black	£16.46 £13.72
10	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
11	MO382785022/8 Available to backorder	Dashboard Support. Right	£29.56 £24.63
12	MO382785021/9 Available to backorder	Dashboard Support. Left	£38.20 £31.83
15	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
18	MO125120200/0 Available to backorder	Plug	£1.40 £1.17
19	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
21	MO325108031/0 Available to backorder	Conveyor	£56.32 £46.93
23	MO125735110/3 Available to backorder	Fuel Tank	£53.72 £44.77
110	MO9598-0002-02 Available to backorder	Spring Pin 2.5mm L.47mm	£1.55 £1.29
