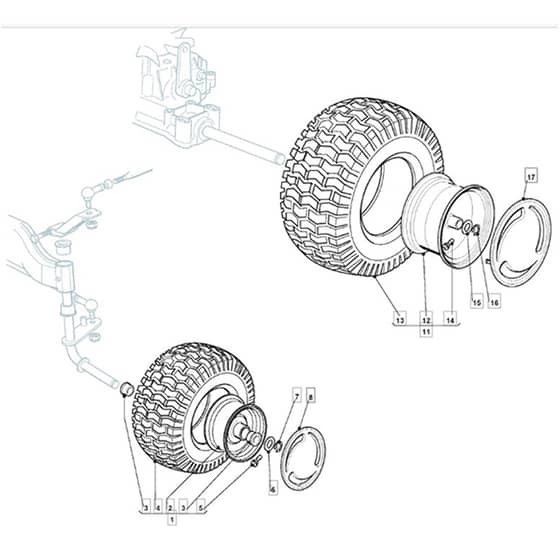

1440H - 2005 - 13-2660-15 - Mountfield Ride On Mower Wheels Diagram

Name: 1440H - 2005 - 13-2660-15 - Mountfield Ride On Mower Wheels Diagram
SKU: 1440h_13_2660_15_wheels-group
Price: 1.53 GBP
Availability: InStock

Part No. 1440h_13_2660_15_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440H - 2005 - 13-2660-15 - Mountfield Ride On Mower Wheels Diagram

Description

Mountfield 1440H Parts Diagram

Product Name - 1440H

Model Year - 2005

Model Type - TCP 102 Hydro

Art.N - 13-2660-15

Engine Model -

	Part No.	Details
2	MO182000590/1 Available to backorder	Rimm	£68.99 £57.49
3	MO125122200/2 In stock	Bearing	£11.82 £9.85
4	MO125590047/0 Available to backorder	Rear Tyre (Deli) From 01-9-2009	£44.93 £37.44
7	MO112001000/0 Available to backorder	Benzing Ring	£1.84 £1.53
8	MO382110252/0 Available to backorder	Front Wheel Cover	£15.76 £13.13
11	MO382680057/0 Available to backorder	Rear Wheel Assy	£188.53 £157.11
12	MO182000592/0 Available to backorder	Rear Wheel Rimm	£109.79 £91.49
13	MO382680067/0 Available to backorder	Shoe Deli Tire 160.50-8	£188.53 £157.11
14	MO125950000/0 In stock	Valve	£5.34 £4.45
15	MO125670005/2 In stock	Washer	£4.08 £3.40
16	MO112001010/0 In stock	Benzing Ring	£1.84 £1.53
