1440H - 2005 - 13-2660-15 - Mountfield Ride On Mower Cutting plate lifting Diagram

Name: 1440H - 2005 - 13-2660-15 - Mountfield Ride On Mower Cutting plate lifting Diagram
SKU: 1440h_13_2660_15_cutting_plate_lifting-group
Price: 1.29 GBP
Availability: InStock

Part No. 1440h_13_2660_15_cutting_plate_lifting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

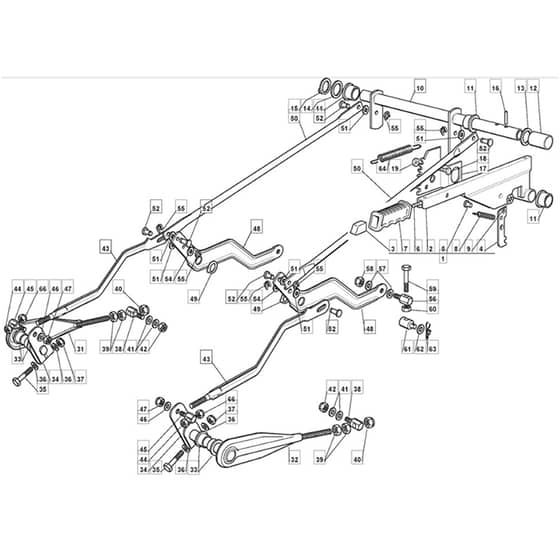

1440H - 2005 - 13-2660-15 - Mountfield Ride On Mower Cutting plate lifting Diagram

Description

Mountfield 1440H Parts Diagram

Product Name - 1440H

Model Year - 2005

Model Type - TCP 102 Hydro

Art.N - 13-2660-15

Engine Model -

	Part No.	Details
1	MO382300002/1 Available to backorder	Lever	£60.54 £50.45
2	MO382318139/1 Available to backorder	Deck Lifting Lever	£40.82 £34.02
3	MO125605000/1 Available to backorder	Button	£2.24 £1.87
5	MO125510011/1 Available to backorder	Pin	£1.55 £1.29
6	MO125033002/1 Available to backorder	Push Rod	£4.24 £3.53
7	MO125394504/1 Available to backorder	Knob	£2.53 £2.11
8	MO125430208/1 Available to backorder	Spring	£3.52 £2.93
9	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
10	MO382000479/2 Available to backorder	Axle From 01-9-2007	£40.40 £33.67
11	MO122034523/0 Available to backorder	Bushing	£1.55 £1.29
12	MO125160025/1 Available to backorder	Spacer	£6.19 £5.16
13	MO322672153/0 Available to backorder	Antifriction Washer	£1.55 £1.29
14	MO112521410/0 Available to backorder	Washer	£1.92 £1.60
66	MO112293200/0 In stock	Hexagon Nut M8 Uni 5588 Acc.6S	£1.55 £1.29
