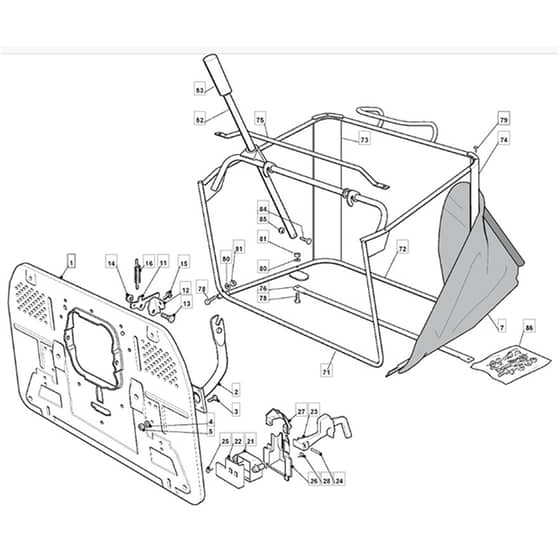

1440H - 2004-2005 - 299931333/MOE - Mountfield Ride On Mower Grasscatcher Diagram

Name: 1440H - 2004-2005 - 299931333/MOE - Mountfield Ride On Mower Grasscatcher Diagram
SKU: 1440h_299931333_moe_grasscatcher-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440H - 2004-2005 - 299931333/MOE - Mountfield Ride On Mower Grasscatcher Diagram

Description

Mountfield 1440H Parts Diagram

Product Name - 1440H

Model Year - 2004-2005

Model Type - TCP 102 Hydro

Art.N - 299931333/MOE

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO182774225/1 Available to backorder	Clamp	£33.79 £28.16
3	MO112793102/0 In stock	Screw	£1.55 £1.29
4	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
5	MO112293201/0 In stock	Nut	£1.69 £1.41
7	MO182106000/2 Available to backorder	Grasscatcher	£122.46 £102.05
11	MO325774417/0 Available to backorder	Clamp	£7.03 £5.86
13	MO125510080/2 Available to backorder	Pin	£1.40 £1.17
14	MO112292102/0 In stock	Nut	£1.69 £1.41
15	MO112735122/1 Available to backorder	Screw	£1.55 £1.29
16	MO127430579/0 Available to backorder	Clutch Spring	£12.86 £10.72
21	MO125600041/0 Available to backorder	Grassc.Full Micro Protection Tcj-F	£3.91 £3.26
22	MO125600042/0 Available to backorder	Grasscatcher Micro Prot Cover	£7.62 £6.35
23	MO125318124/0 Available to backorder	Full Grassc. Microswtich Cover	£1.97 £1.64
24	MO112400030/0 Available to backorder	Pin	£1.82 £1.52
25	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
26	MO125600047/0 Available to backorder	Grassc.Full Micro Protection Tc 2000	£1.69 £1.41
27	MO125600048/0 Available to backorder	Empty Micro Grassc.Protection Cover	£1.55 £1.29
28	MO112728450/0 In stock	Screw	£1.55 £1.29
71	MO382800051/1 Available to backorder	Upper Frame	£197.09 £164.24
72	MO382800002/2 Available to backorder	Lower Grasscatcher Frame	£33.79 £28.16
73	MO325032001/1 Available to backorder	Right Angular Support	£15.34 £12.78
74	MO325032002/1 Available to backorder	Left Angular Support	£15.34 £12.78
75	MO382394001/2 Available to backorder	Front Handle	£12.73 £10.61
76	MO382650038/1 Available to backorder	Lower Stiffening	£12.25 £10.21
79	MO112729601/1 Available to backorder	Screw From 01-9-2003	£1.48 £1.23
80	MO112582101/0 Available to backorder	Grower	£1.66 £1.38
81	MO112292100/0 Available to backorder	Nut	£1.40 £1.17
82	MO125869029/1 Available to backorder	Grasscatcher Lifting Tube	£29.56 £24.63
83	MO125394508/0 Available to backorder	Knob	£5.06 £4.22
84	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
85	MO112154510/0 In stock	Nut	£1.55 £1.29
86	MO382180027/1 Available to backorder	Grasscatcher Screw Outfit	£14.23 £11.86
