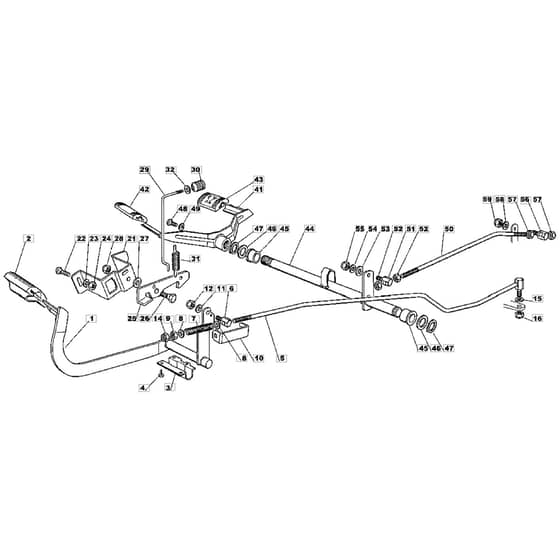

1440H - 2004 - 13-2660-14 - Mountfield Ride On Mower Controls Diagram

Name: 1440H - 2004 - 13-2660-14 - Mountfield Ride On Mower Controls Diagram
SKU: 1440h_13_2660_14_controls-group
Price: 1.16 GBP
Availability: InStock

Part No. 1440h_13_2660_14_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440H - 2004 - 13-2660-14 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 1440H Parts Diagram

Product Name - 1440H

Model Year - 2004

Model Type - TC 102 Hydro

Art.N - 13-2660-14

Engine Model -

	Part No.	Details
2	MO125110267/0 Available to backorder	Pedal Cover	£3.79 £3.16
3	MO325547081/2 Available to backorder	Clamp	£5.06 £4.22
4	MO9847-8016-16 Available to backorder	Screw	£1.97 £1.64
5	MO382000487/1 Available to backorder	Brake Rod	£34.85 £29.04
6	MO125510052/1 Available to backorder	Pivot Bolt	£5.06 £4.22
7	MO25430236/0 Available to backorder	Spring	£1.55 £1.29
8	MO112521360/0 In stock	Washer	£1.55 £1.29
9	MO112295200/0 In stock	Nut	£1.39 £1.16
10	MO325774275/1 Available to backorder	Clamp	£3.52 £2.93
14	MO112156602/0 In stock	Lock Nut	£1.39 £1.16
15	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
21	MO325785143/1 Available to backorder	Support	£4.50 £3.75
22	MO112815210/0 Available to backorder	Screw	£1.63 £1.36
23	MO112523040/0 In stock	Washer	£1.55 £1.29
24	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
25	MO325253001/0 Available to backorder	Hook	£4.08 £3.40
26	MO122524970/2 Available to backorder	Bolt	£1.90 £1.58
27	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
28	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
29	MO125033034/0 Available to backorder	Rod T40H	£5.22 £4.35
30	MO125394509/1 In stock	Knob	£2.53 £2.11
31	MO125430213/0 Available to backorder	Spring	£1.70 £1.42
32	MO112523020/0 In stock	Washer	£1.55 £1.29
41	MO382500013/0 Available to backorder	Drive Pedal	£38.00 £31.67
43	MO125110266/0 Available to backorder	Pedal Cover-Rear	£11.26 £9.38
44	MO382000481/0 Available to backorder	Pedal Axle	£74.62 £62.18
45	MO122034523/0 Available to backorder	Bushing	£1.55 £1.29
46	MO322672153/0 Available to backorder	Washer	£1.55 £1.29
47	MO112609260/0 In stock	Circlip	£1.84 £1.53
48	MO9939-0816-16 Available to backorder	Screw	£8.29 £6.91
49	MO112583500/0 In stock	Washer	£1.55 £1.29
50	MO25033031/0 Available to backorder	Drive Rod	£24.96 £20.80
57	MO112293200/0 In stock	Nut	£1.55 £1.29
