1440H - 2003 - 13-2660-13 - Mountfield Ride On Mower Grasscatcher Diagram

Description

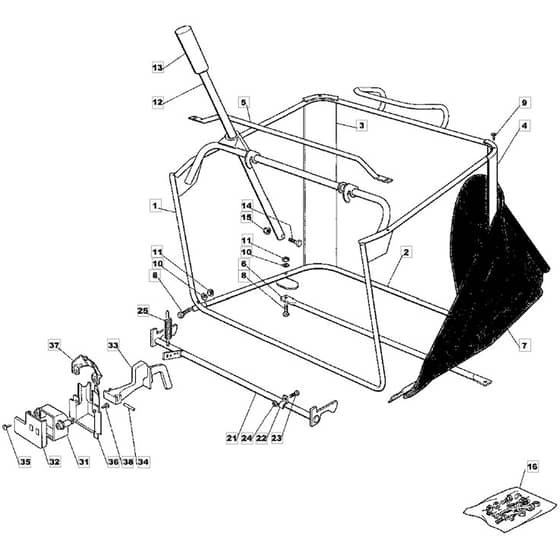

Mountfield 1440H Parts Diagram

Product Name - 1440H

Model Year - 2003

Model Type - TC 102 Hydro

Art.N - 13-2660-13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382800051/1 Available to backorder	Frame-Upper	£197.09 £164.24
2	MO382800002/2 Available to backorder	Frame-Lower	£33.79 £28.16
3	MO325032001/1 Available to backorder	Right Angular Support	£15.34 £12.78
4	MO325032002/1 Available to backorder	Left Angular Support	£15.34 £12.78
5	MO382394001/2 Available to backorder	Handle-Front	£12.73 £10.61
6	MO382650038/1 Available to backorder	Reinforcement Rod	£12.25 £10.21
7	MO182106000/2 Available to backorder	Grass Bag	£122.46 £102.05
9	MO112729601/1 Available to backorder	Screw	£1.48 £1.23
10	MO112581200/0 Available to backorder	Washer	£1.97 £1.64
11	MO112292100/0 Available to backorder	Nut	£1.40 £1.17
12	MO125869029/1 Available to backorder	Lever	£29.56 £24.63
13	MO125394508/0 Available to backorder	Handle	£5.06 £4.22
14	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
15	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
16	MO382180027/1 Available to backorder	Outfit. Screws Pos 8-11.14-15 incl.	£14.23 £11.86
23	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
24	MO112292102/0 In stock	Nut	£1.69 £1.41
25	MO125430210/1 Available to backorder	Spring	£2.68 £2.23
31	MO125600041/0 Available to backorder	Micro Protection	£3.91 £3.26
32	MO125600042/0 Available to backorder	Protection Cover	£7.62 £6.35
33	MO125318124/0 Available to backorder	Switch Lever	£1.97 £1.64
34	MO112400030/0 Available to backorder	Pin	£1.82 £1.52
36	MO125600047/0 Available to backorder	Micro Protection	£1.69 £1.41
37	MO125600048/0 Available to backorder	Protection Cover	£1.55 £1.29
38	MO112728450/0 In stock	Screw	£1.55 £1.29
