1438M SD - 2005 - 13-2656-15 - Mountfield Ride On Mower Transmission Diagram

Name: 1438M SD - 2005 - 13-2656-15 - Mountfield Ride On Mower Transmission Diagram
SKU: 1438m_sd_13_2656_15_transmission-group
Price: 1.29 GBP
Availability: InStock

Part No. 1438m_sd_13_2656_15_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1438M SD - 2005 - 13-2656-15 - Mountfield Ride On Mower Transmission Diagram

Description

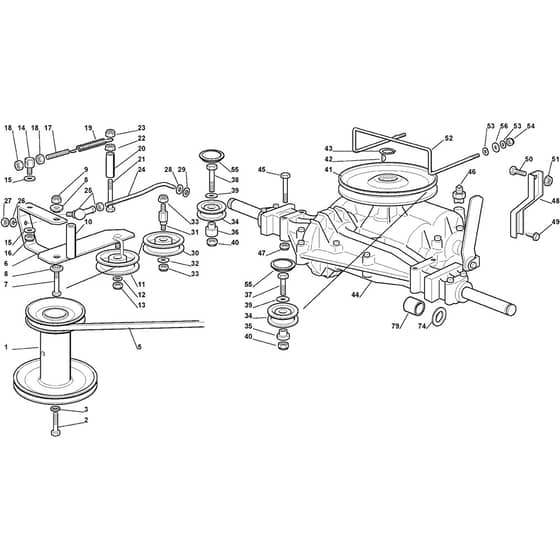

Mountfield 1438M SD Parts Diagram

Product Name - 1438M SD

Model Year - 2005

Model Type - JTP 98 S

Art.N - 13-2656-15

Engine Model -

	Part No.	Details
1	MO125601547/1 Available to backorder	Pulley	£220.26 £183.55
2	MO112737310/0 Available to backorder	Screw	£2.94 £2.45
3	MO112543000/0 Available to backorder	Washer	£1.63 £1.36
5	MO135062000/1 In stock	Belt	£32.32 £26.93
7	MO112692080/0 Available to backorder	Screw	£1.63 £1.36
8	MO125038002/1 Available to backorder	Bushing	£1.55 £1.29
11	MO125601554/0 In stock	Pulley	£25.66 £21.38
14	MO125510040/2 Available to backorder	Pin	£5.76 £4.80
15	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
17	MO125840005/0 Available to backorder	Tie Rod	£2.94 £2.45
19	MO125430219/1 Available to backorder	Spring	£3.66 £3.05
21	MO112692050/0 In stock	Screw	£1.84 £1.53
22	MO112293201/0 In stock	Nut	£1.70 £1.42
24	MO125840002/0 Available to backorder	Tie Rod	£18.59 £15.49
25	MO122746601/0 Available to backorder	Joint	£19.14 £15.95
26	MO112583500/0 In stock	Grower	£1.55 £1.29
27	MO112293200/0 In stock	Nut	£1.55 £1.29
28	MO112521350/0 In stock	Washer	£1.55 £1.29
29	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
30	MO125601555/0 In stock	Pulley	£29.28 £24.40
34	MO325601570/1 In stock	Pulley	£24.37 £20.31
35	MO125160018/1 Available to backorder	Spacer	£6.76 £5.63
36	MO125160014/1 Available to backorder	Spacer	£7.62 £6.35
37	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
38	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
39	MO112523060/0 In stock	Washer	£1.55 £1.29
40	MO112155000/0 In stock	Nut	£1.55 £1.29
41	MO182601503/0 Available to backorder	Pulley	£101.34 £84.45
42	MO112139430/0 In stock	Key	£1.97 £1.64
43	MO112608950/0 Available to backorder	Seeger	£1.63 £1.36
47	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
48	MO325774247/0 Available to backorder	Bracket	£11.41 £9.51
49	MO112735150/0 Available to backorder	Screw	£1.70 £1.42
50	MO112792611/0 In stock	Screw From 01-9-2003	£1.55 £1.29
53	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
54	MO112292102/0 In stock	Nut	£1.70 £1.42
55	MO125109521/1 Available to backorder	Cover	£1.63 £1.36
74	MO112521410/0 Available to backorder	Washer M20 21 X 37 X 3	£1.92 £1.60
