1438M SD - 2002-2005 - 299952333/MOE - Mountfield Ride On Mower Engagement Diagram

Name: 1438M SD - 2002-2005 - 299952333/MOE - Mountfield Ride On Mower Engagement Diagram
SKU: 1438m_sd_299952333_moe_engagement-group
Price: 1.16 GBP
Availability: InStock

Part No. 1438m_sd_299952333_moe_engagement-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

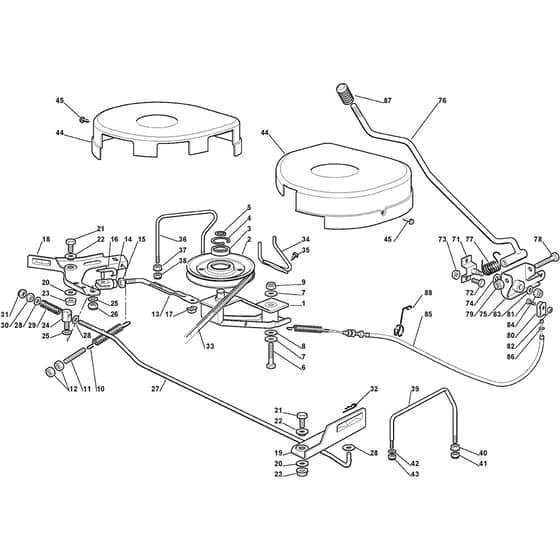

1438M SD - 2002-2005 - 299952333/MOE - Mountfield Ride On Mower Engagement Diagram

Description

Mountfield 1438M SD Parts Diagram

Product Name - 1438M SD

Model Year - 2002-2005

Model Type - JTP 98 S

Art.N - 299952333/MOE

Engine Model -

	Part No.	Details
2	MO125601587/0 Available to backorder	Pulley	£137.70 £114.75
3	MO119216048/0 In stock	Bearing	£18.31 £15.26
4	MO112610800/0 In stock	Seeger	£1.70 £1.42
5	MO112609200/0 Available to backorder	Seeger	£1.63 £1.36
6	MO112691700/0 Available to backorder	Screw	£1.84 £1.53
7	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
11	MO125840005/0 Available to backorder	Tie Rod	£2.94 £2.45
15	MO112292100/0 Available to backorder	Nut	£1.39 £1.16
17	MO112436050/0 In stock	Plate	£1.84 £1.53
19	MO325318135/1 Available to backorder	Left Lever	£17.87 £14.89
20	MO322672152/0 Available to backorder	Antifriction Washer	£1.84 £1.53
22	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
25	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
27	MO125033045/1 Available to backorder	Rod	£52.08 £43.40
28	MO112521350/0 In stock	Washer	£1.55 £1.29
29	MO125430243/0 Available to backorder	Spring	£9.38 £7.82
30	MO112293200/0 In stock	Nut	£1.55 £1.29
32	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
33	MO135061503/0 Available to backorder	Trapezoidal Belt	£55.21 £46.01
34	MO125270311/1 Available to backorder	Belt Guide	£13.66 £11.38
35	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
36	MO125270313/0 Available to backorder	Belt Guide	£11.41 £9.51
39	MO125270312/0 Available to backorder	Belt Guide	£27.31 £22.76
42	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
44	MO125060106/0 Available to backorder	Belt Protection	£7.18 £5.98
45	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
71	MO382785073/0 Available to backorder	Support	£30.98 £25.82
72	MO112792611/0 In stock	Screw	£1.55 £1.29
73	MO112293201/0 In stock	Nut	£1.70 £1.42
74	MO322672151/0 Available to backorder	Antifriction Washer	£1.84 £1.53
76	MO382318135/0 Available to backorder	Lever	£71.52 £59.60
78	MO112692050/0 In stock	Screw	£1.84 £1.53
79	MO112155000/0 In stock	Nut	£1.55 £1.29
80	MO322061337/0 Available to backorder	Connecting Plate	£1.55 £1.29
81	MO112791213/1 In stock	Screw	£1.55 £1.29
82	MO112154510/0 In stock	Nut	£1.55 £1.29
84	MO112155010/0 In stock	Nut	£2.11 £1.76
85	MO384207104/1 Available to backorder	Blades Engagement Wire	£30.98 £25.82
86	MO112523060/0 In stock	Washer	£1.55 £1.29
87	MO125394510/0 In stock	Knob	£4.24 £3.53
88	MO127430557/0 Available to backorder	Spring	£3.52 £2.93
