1438M - 2007 - 299952383/MOE - Mountfield Ride On Mower Body Diagram

Description

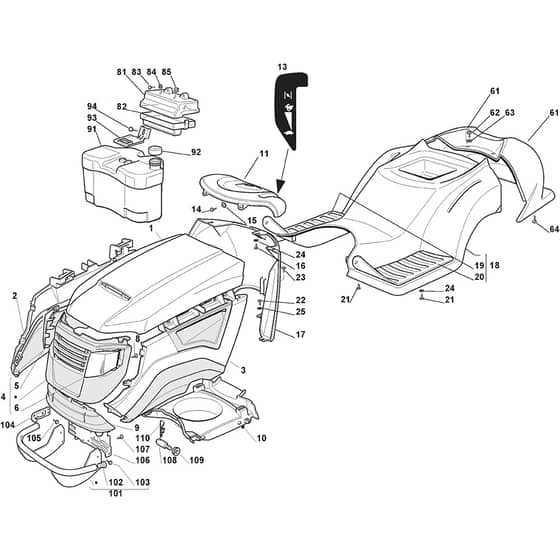

Mountfield 1438M Parts Diagram

Product Name - 1438M

Model Year - 2007

Model Type - JS 98 S

Art.N - 299952383/MOE

Engine Model -

	Part No.	Details
1	MO325076871/0 Available to backorder	Upper Engine Hood Red	£106.51 £88.76
2	MO382394614/0 Available to backorder	Hood. Right	£80.22 £66.85
4	MO382394613/0 Available to backorder	Hood. Front	£80.58 £67.15
5	MO325410876/0 Available to backorder	Right Grill	£8.80 £7.33
6	MO325410877/0 Available to backorder	Left Grill	£8.80 £7.33
9	MO325076870/1 Available to backorder	Lower Hood. Front	£16.46 £13.72
10	MO325108031/0 Available to backorder	Conveyor	£56.32 £46.93
17	MO325785053/1 Available to backorder	Black Dashboard Support	£102.77 £85.64
23	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
24	MO112523040/0 In stock	Washer	£1.55 £1.29
25	MO112523050/0 In stock	Washer	£1.57 £1.31
62	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
63	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
81	MO125600020/0 Available to backorder	Upper Guard	£12.40 £10.33
83	MO112728460/0 Available to backorder	Screw	£1.55 £1.29
84	MO112521320/0 Available to backorder	Washer	£1.63 £1.36
85	MO112437502/0 Available to backorder	Plate	£1.55 £1.29
92	MO125795000/1 In stock	Fuel Cap From 01-9-2003	£7.74 £6.45
94	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
101	MO382869025/0 Available to backorder	Muffler Protection	£125.30 £104.42
102	MO118737860/0 Available to backorder	Cap	£1.55 £1.29
103	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
105	MO112731580/0 Available to backorder	Screw	£1.63 £1.36
106	MO325774301/2 Available to backorder	Engine Hood Support	£17.74 £14.78
107	MO112735402/0 In stock	Screw	£1.55 £1.29
108	MO125510169/1 Available to backorder	Pin	£2.40 £2.00
109	MO112293201/0 In stock	Nut	£1.70 £1.42
110	MO124487998/0 In stock	R Clip D.2	£1.04 £0.87
