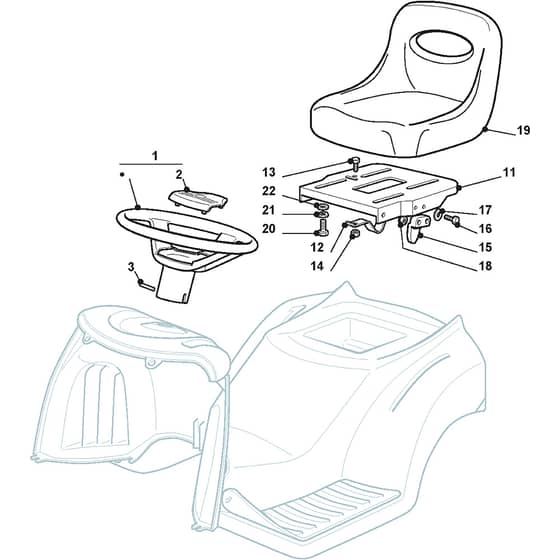

1438M - 2007 - 299952383/MO6 - Mountfield Ride On Mower Seat and Steering Wheel Diagram

Name: 1438M - 2007 - 299952383/MO6 - Mountfield Ride On Mower Seat and Steering Wheel Diagram
SKU: 1438m_299952383_mo6_seat_and_steering_wheel-group
Price: 1.29 GBP
Availability: InStock

Part No. 1438m_299952383_mo6_seat_and_steering_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1438M - 2007 - 299952383/MO6 - Mountfield Ride On Mower Seat and Steering Wheel Diagram

Description

Mountfield 1438M Parts Diagram

Product Name - 1438M

Model Year - 2007

Model Type - JS 98 S

Art.N - 299952383/MO6

Engine Model -

	Part No.	Details
1	MO125961216/1 Available to backorder	Steering Wheel	£54.61 £45.51
2	MO325580501/0 Available to backorder	Cap	£7.62 £6.35
3	MO112620299/0 Available to backorder	Elastic Pin	£1.84 £1.53
11	MO325547033/1 Available to backorder	Seat Plate	£39.42 £32.85
12	MO125430223/2 Available to backorder	Spring From 01-9-2003	£6.19 £5.16
13	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
15	MO327063021/1 Available to backorder	Cam	£7.86 £6.55
16	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
17	MO112523020/0 In stock	Washer	£1.55 £1.29
18	MO112154330/0 In stock	Nut	£1.55 £1.29
19	MO125722463/0 Available to backorder	Seat	£204.13 £170.11
20	MO112793101/0 In stock	Screw	£1.55 £1.29
21	MO112583500/0 In stock	Grower	£1.55 £1.29
22	MO112523060/0 In stock	Washer M8 8.4 X 24 X 2	£1.55 £1.29
