1438M - 2007 - 299952383/MO6 - Mountfield Ride On Mower Brake and Gearbox Controls Diagram

Name: 1438M - 2007 - 299952383/MO6 - Mountfield Ride On Mower Brake and Gearbox Controls Diagram
SKU: 1438m_299952383_mo6_brake_and_gearbox_controls-group
Price: 1.16 GBP
Availability: InStock

Part No. 1438m_299952383_mo6_brake_and_gearbox_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

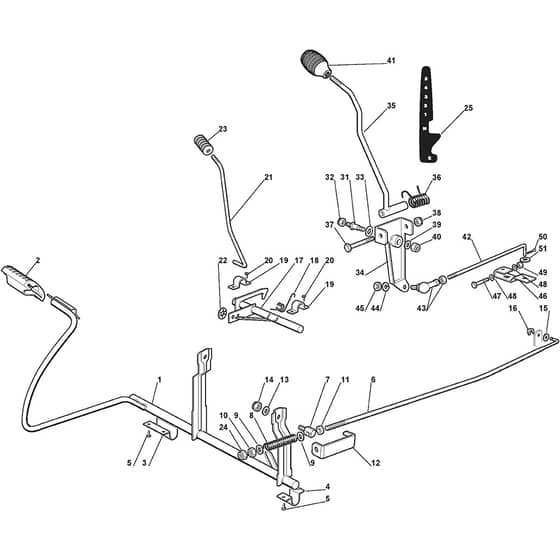

1438M - 2007 - 299952383/MO6 - Mountfield Ride On Mower Brake and Gearbox Controls Diagram

Description

Mountfield 1438M Parts Diagram

Product Name - 1438M

Model Year - 2007

Model Type - JS 98 S

Art.N - 299952383/MO6

Engine Model -

	Part No.	Details
1	MO382500002/1 Available to backorder	Pedal	£64.75 £53.96
2	MO125110269/0 Available to backorder	Clamp Cover	£3.66 £3.05
3	MO325547039/0 Available to backorder	Right Plate	£4.50 £3.75
4	MO325547041/1 Available to backorder	Left Plate	£5.34 £4.45
6	MO125033036/0 Available to backorder	Rod	£36.59 £30.49
8	MO125430236/1 Available to backorder	Spring	£1.55 £1.29
9	MO112521360/0 In stock	Washer	£1.55 £1.29
10	MO112295200/0 In stock	Nut	£1.39 £1.16
11	MO125160026/0 Available to backorder	Spacer	£6.77 £5.64
12	MO325774275/1 Available to backorder	Clamp	£3.52 £2.93
13	MO112523040/0 In stock	Washer	£1.55 £1.29
14	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO112521350/0 In stock	Washer	£1.55 £1.29
16	MO112436050/0 In stock	Plate	£1.84 £1.53
17	MO382000361/0 Available to backorder	Parking Brake Switch Axle	£26.48 £22.07
19	MO325547049/0 Available to backorder	Plate	£3.10 £2.58
20	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
22	MO112604898/0 Available to backorder	Crown Fastener	£1.63 £1.36
23	MO127395050/1 Available to backorder	Knob	£2.94 £2.45
24	MO112156602/0 In stock	Nut	£1.39 £1.16
31	MO125510035/0 In stock	Pin	£3.66 £3.05
33	MO322672151/0 Available to backorder	Antifriction Washer	£1.84 £1.53
35	MO382318134/0 Available to backorder	Gear Control Lever	£45.04 £37.53
36	MO125430226/0 Available to backorder	Spring	£2.24 £1.87
37	MO112692050/0 In stock	Screw	£1.84 £1.53
38	MO112155000/0 In stock	Nut	£1.55 £1.29
39	MO112523060/0 In stock	Washer	£1.55 £1.29
40	MO112155010/0 In stock	Nut	£2.11 £1.76
41	MO125394510/0 In stock	Knob	£4.24 £3.53
43	MO122746601/0 Available to backorder	Joint	£19.14 £15.95
44	MO112583500/0 In stock	Grower	£1.55 £1.29
45	MO112293200/0 In stock	Nut	£1.55 £1.29
46	MO325318128/1 Available to backorder	Gearshift	£4.64 £3.87
47	MO112689500/0 Available to backorder	Screw	£1.63 £1.36
48	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
50	MO112141418/0 In stock	Split Pin 3 X 20	£1.55 £1.29
