1438M - 2007 - 13-2673-12 - Mountfield Ride On Mower Wheels Diagram

Name: 1438M - 2007 - 13-2673-12 - Mountfield Ride On Mower Wheels Diagram
SKU: 1438m_13_2673_12_wheels-group
Price: 1.29 GBP
Availability: InStock

Part No. 1438m_13_2673_12_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1438M - 2007 - 13-2673-12 - Mountfield Ride On Mower Wheels Diagram

Description

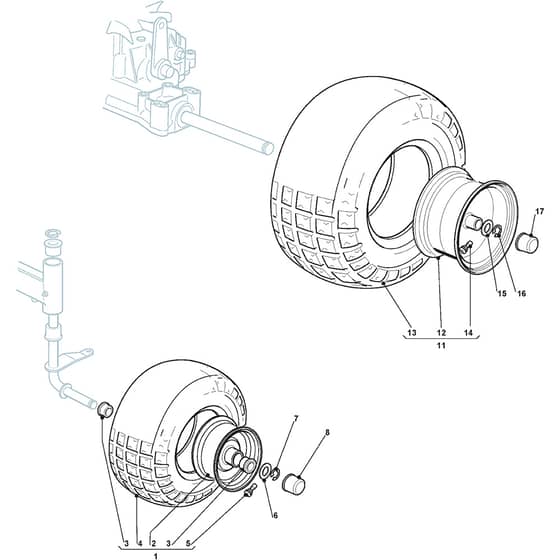

Mountfield 1438M Parts Diagram

Product Name - 1438M

Model Year - 2007

Model Type - JS 98 S

Art.N - 13-2673-12

Engine Model -

	Part No.	Details
2	MO182000595/1 Available to backorder	Rim	£68.99 £57.49
3	MO125122200/2 In stock	Bearing	£11.82 £9.85
7	MO112001000/0 Available to backorder	Circlip Ø15	£1.84 £1.53
12	MO182000592/0 Available to backorder	Rim	£109.79 £91.49
13	MO125590033/0 Available to backorder	Tyre 18X8.00-8 2Pr K383 (Kenda)	£81.66 £68.05
14	MO125950000/0 In stock	Valve	£5.34 £4.45
15	MO125670005/2 In stock	Washer	£4.08 £3.40
16	MO112001010/0 In stock	Circlip	£1.84 £1.53
17	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
