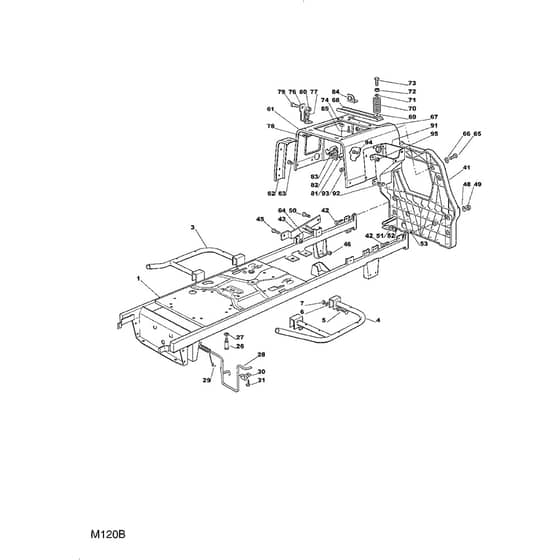

1438M - 2006 - 13-2673-11 - Mountfield Ride On Mower Chassis Diagram

Name: 1438M - 2006 - 13-2673-11 - Mountfield Ride On Mower Chassis Diagram
SKU: 1438m_13_2673_11_chassis-group
Price: 1.29 GBP
Availability: InStock

Part No. 1438m_13_2673_11_chassis-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1438M - 2006 - 13-2673-11 - Mountfield Ride On Mower Chassis Diagram

Description

Mountfield 1438M Parts Diagram

Product Name - 1438M

Model Year - 2006

Model Type - JS 98 S

Art.N - 13-2673-11

Engine Model -

	Part No.	Details
5	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
26	MO125580023/0 Available to backorder	Belt Guide	£7.81 £6.51
27	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
41	MO125547106/0 Available to backorder	Plate-Rear	£80.22 £66.85
42	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
50	MO9997-0840-16 Available to backorder	Screw	£1.55 £1.29
52	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
65	MO9997-0620-16 Available to backorder	Screw	£1.63 £1.36
66	MO112523040/0 In stock	Washer	£1.55 £1.29
67	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
69	MO112523060/0 In stock	Washer	£1.55 £1.29
70	MO125430205/1 Available to backorder	Spring	£5.92 £4.93
71	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
73	MO125943001/1 Available to backorder	Screw	£1.97 £1.64
74	MO112360420/0 Available to backorder	Nut	£1.55 £1.29
77	MO9997-0816-16 In stock	Screw	£1.55 £1.29
78	MO112293201/0 In stock	Nut	£1.70 £1.42
79	MO122524970/2 Available to backorder	Bolt	£1.90 £1.58
80	MO9712-0831-02 Available to backorder	Nut	£5.39 £4.49
81	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
82	MO325755016/0 Available to backorder	Bracket	£1.97 £1.64
83	MO112154330/0 In stock	Nut	£1.55 £1.29
84	MO325755025/2 Available to backorder	Bracket	£5.76 £4.80
94	MO112790781/0 In stock	Screw	£1.55 £1.29
95	MO112292102/0 In stock	Nut	£1.70 £1.42
