1438M - 2003 - 13-2656-13 - Mountfield Ride On Mower Body Diagram

Description

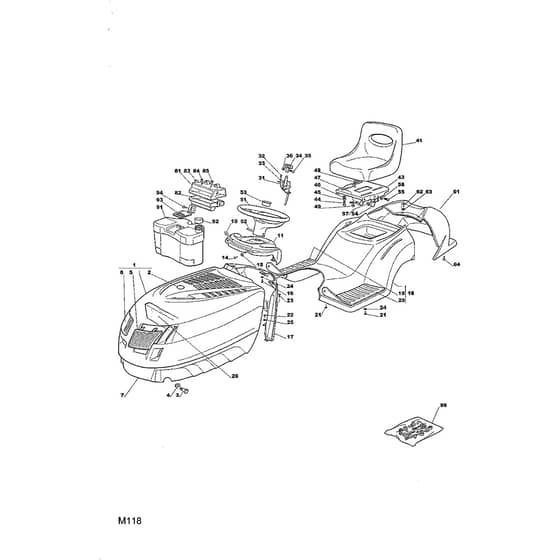

Mountfield 1438M Parts Diagram

Product Name - 1438M

Model Year - 2003

Model Type - NJ 98

Art.N - 13-2656-13

Engine Model -

	Part No.	Details
1	MO382076841/3 Available to backorder	Engine Hood-Red	£222.78 £185.65
2	MO325547025/1 Available to backorder	Plate-Red	£1.84 £1.53
3	MO125510023/1 Available to backorder	Bolt	£5.10 £4.25
4	MO112436050/0 In stock	Lock Plate	£1.84 £1.53
5	MO125410861/0 Available to backorder	Grill-Lh	£19.70 £16.42
6	MO125410860/0 Available to backorder	Grill-Rh	£19.70 £16.42
7	MO125076808/0 Available to backorder	Engine Hood-Lower	£78.85 £65.71
10	MO125260000/0 Available to backorder	Grommet	£2.94 £2.45
14	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
15	MO112437502/0 Available to backorder	Lock Plate	£1.55 £1.29
16	MO112735402/0 In stock	Screw	£1.55 £1.29
17	MO325785053/1 Available to backorder	Support. Dashboard	£102.77 £85.64
