1438M - 2002 - 13-2656-12 - Mountfield Ride On Mower Engine Diagram

Description

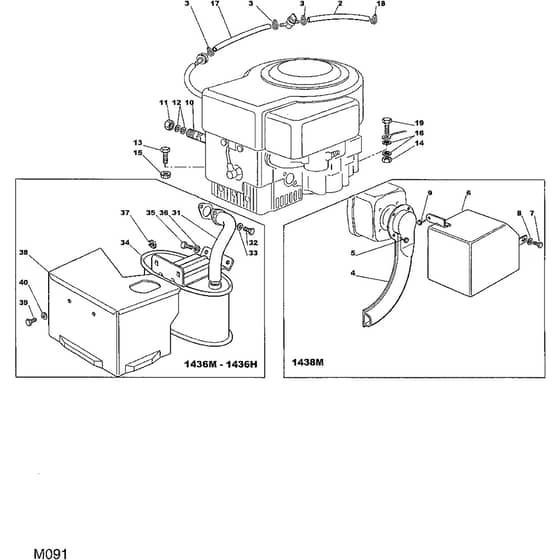

Mountfield 1438M Parts Diagram

Product Name - 1438M

Model Year - 2002

Model Type - NJ 98

Art.N - 13-2656-12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325869016/1 Available to backorder	Fuel Hose	£8.02 £6.68
3	MO118375051/1 Available to backorder	Hose Clamp	£3.00 £2.50
5	MO9849-7809-16 Available to backorder	Screw	£1.20 £1.00
10	MO125598050/0 Available to backorder	Oil Drain Tube	£8.02 £6.68
11	MO118737849/0 Available to backorder	Oil Drain Plug	£2.53 £2.11
12	MO118401001/1 Available to backorder	Oil Seal	£1.55 £1.29
13	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO112293201/0 In stock	Nut	£1.69 £1.41
16	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
17	MO325869006/1 Available to backorder	Fuel Hose	£6.34 £5.28
18	MO118375053/0 Available to backorder	Hose Clamp	£1.97 £1.64
19	MO9997-0840-16 Available to backorder	Screw	£1.55 £1.29
