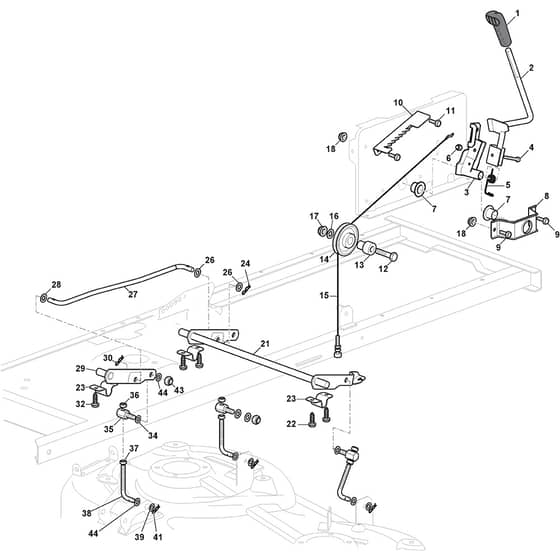

1438 M-SD - 2023-2024 - 2T0520483/MTF - Mountfield Ride On Mower Cutting plate lifting Diagram

Name: 1438 M-SD - 2023-2024 - 2T0520483/MTF - Mountfield Ride On Mower Cutting plate lifting Diagram
SKU: 1438_m_sd_2t0520483_mtf_cutting_plate_lifting-group
Price: 1.16 GBP
Availability: InStock

Part No. 1438_m_sd_2t0520483_mtf_cutting_plate_lifting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1438 M-SD - 2023-2024 - 2T0520483/MTF - Mountfield Ride On Mower Cutting plate lifting Diagram

Description

Mountfield 1438 M-SD Parts Diagram

Product Name - 1438 M-SD

Model Year - 2023-2024

Model Type - SDS 98

Art.N - 2T0520483/MTF

Engine Model -

	Part No.	Details
1	MO325394533/0 Available to backorder	Knob	£3.10 £2.58
2	MO382318229/0 In stock	Lever	Was £16.25 £13.54 Special Price £9.79 £8.16
3	MO382318231/1 Available to backorder	Lifting Axle Assy	£7.02 £5.85
4	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
5	MO125430261/0 Available to backorder	Spring	£1.39 £1.16
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO325038006/0 Available to backorder	Bushing	£1.55 £1.29
8	MO325785297/0 Available to backorder	Support	£6.19 £5.16
10	MO325735515/0 Available to backorder	Steering Sector	£8.00 £6.67
11	MO112792611/0 In stock	Screw	£1.55 £1.29
12	MO112793701/0 In stock	Screw	£1.55 £1.29
44	MO112521360/0 In stock	Washer	£1.55 £1.29
