1436S - 2006 - 13-2670-11 - Mountfield Ride On Mower Deck Lifting Diagram

Name: 1436S - 2006 - 13-2670-11 - Mountfield Ride On Mower Deck Lifting Diagram
SKU: 1436s_13_2670_11_deck_lifting-group
Price: 1.16 GBP
Availability: InStock

Part No. 1436s_13_2670_11_deck_lifting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

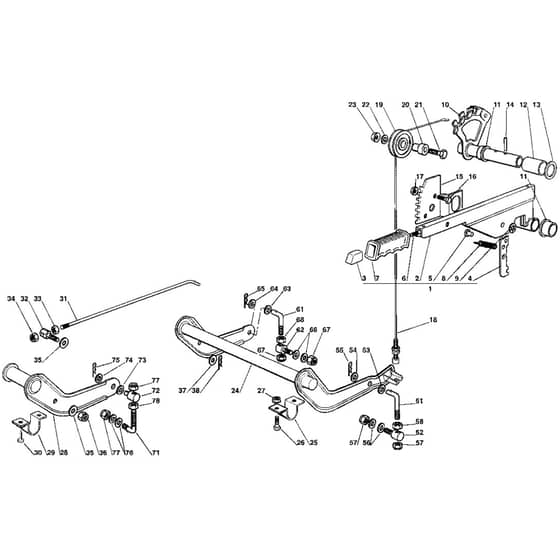

1436S - 2006 - 13-2670-11 - Mountfield Ride On Mower Deck Lifting Diagram

Description

Mountfield 1436S Parts Diagram

Product Name - 1436S

Model Year - 2006

Model Type -

Art.N - 13-2670-11

	Part No.	Details
1	MO382300002/1 Available to backorder	Lift Lever Assy	£60.54 £50.45
2	MO382318139/1 Available to backorder	Lift Lever	£40.82 £34.02
3	MO125605000/1 Available to backorder	Press Button	£2.24 £1.87
4	MO325470901/1 Available to backorder	Dog	£11.54 £9.62
5	MO25510011/0 Available to backorder	Pin	£1.55 £1.29
6	MO125033002/1 Available to backorder	Push Rod	£4.24 £3.53
7	MO125394504/1 Available to backorder	Handle	£2.53 £2.11
8	MO125430208/1 Available to backorder	Spring	£3.52 £2.93
9	MO112604899/0 In stock	Locking Washer	£1.55 £1.29
11	MO122034523/0 Available to backorder	Bushing	£1.55 £1.29
13	MO112521410/0 Available to backorder	Washer	£1.92 £1.60
14	MO112620310/0 Available to backorder	Pin	£1.97 £1.64
16	MO9997-0816-16 In stock	Screw	£1.55 £1.29
17	MO112293201/0 In stock	Nut	£1.70 £1.42
18	MO182004603/0 Available to backorder	Lift Wire	£23.15 £19.29
19	MO125601557/0 Available to backorder	Cable Pulley	£13.60 £11.33
20	MO125510032/0 Available to backorder	Spacer	£7.81 £6.51
21	MO9997-0850-16 Available to backorder	Screw	£4.08 £3.40
22	MO112523060/0 In stock	Washer	£1.55 £1.29
24	MO382000381/2 Available to backorder	Lift Axle	£74.62 £62.18
25	MO325547037/2 Available to backorder	Clamp	£3.38 £2.82
26	MO112791200/1 In stock	Screw	£1.55 £1.29
27	MO112292102/0 In stock	Nut	£1.70 £1.42
28	MO382318137/0 Available to backorder	Lift Arm	£35.20 £29.33
29	MO325547041/1 Available to backorder	Clamp	£5.34 £4.45
30	MO9847-8016-16 Available to backorder	Screw	£1.97 £1.64
31	MO125033013/0 Available to backorder	Lift Rod	£36.59 £30.49
32	MO125510040/2 Available to backorder	Pivot Bolt	£5.76 £4.80
33	MO112293200/0 In stock	Nut	£1.55 £1.29
34	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
35	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
37	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
38	MO124487997/0 In stock	Hair Pin	£1.55 £1.29
51	MO125840003/2 Available to backorder	Lift Tie Rod	£12.40 £10.33
52	MO125510024/1 Available to backorder	Pivot Bolt	£6.19 £5.16
53	MO112521360/0 In stock	Washer	£1.55 £1.29
54	MO325670008/1 In stock	Washer	£1.55 £1.29
57	MO112156602/0 In stock	Lock Nut	£1.39 £1.16
58	MO112295200/0 In stock	Nut	£1.39 £1.16
71	MO125840014/0 Available to backorder	Lift Tie Rod	£30.98 £25.82
72	MO125510069/1 Available to backorder	Pivot Bolt	£8.59 £7.16
