1436S - 2006 - 13-2670-11 - Mountfield Ride On Mower B&S Engine Diagram

Description

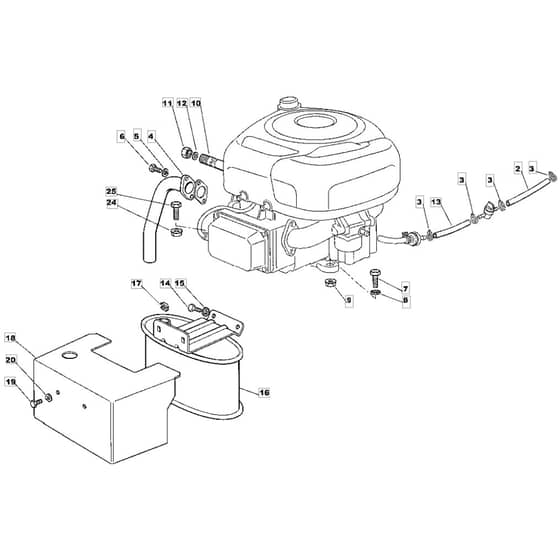

Mountfield 1436S Parts Diagram

Product Name - 1436S

Model Year - 2006

Model Type -

Art.N - 13-2670-11

	Part No.	Details
1	MO325869009/1 Available to backorder	Fuel Hose	£13.81 £11.51
3	MO118375062/0 Available to backorder	Hose Clamp	£1.92 £1.60
4	MO118738224/0 Available to backorder	Exhaust Connecting Tube	£40.69 £33.91
6	MO9988-3619-16 Available to backorder	Screw	£2.53 £2.11
7	MO9997-0840-16 Available to backorder	Screw L . 40 mm	£1.55 £1.29
10	MO125598050/0 Available to backorder	Oil Drain Tube	£8.00 £6.67
11	MO118737849/0 Available to backorder	Oil Drain Plug	£2.53 £2.11
12	MO118401001/1 Available to backorder	Oil Seal	£1.55 £1.29
13	MO325869006/1 Available to backorder	Fuel Hose	£6.32 £5.27
14	MO9997-0820-16 In stock	Screw	£1.55 £1.29
15	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
16	MO182750010/0 Available to backorder	Muffler	£123.89 £103.24
17	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
19	MO9997-0816-16 In stock	Screw	£1.55 £1.29
20	MO112583500/0 In stock	Washer	£1.55 £1.29
24	MO112293201/0 In stock	Nut	£1.70 £1.42
25	MO112691100/0 Available to backorder	Use 112691100.0	£1.63 £1.36
