1436M - 2006 - 299951383/MO6 - Mountfield Ride On Mower Options Diagram

Name: 1436M - 2006 - 299951383/MO6 - Mountfield Ride On Mower Options Diagram
SKU: 1436m_299951383_mo6_options-group
Price: 0.87 GBP
Availability: InStock

Part No. 1436m_299951383_mo6_options-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436M - 2006 - 299951383/MO6 - Mountfield Ride On Mower Options Diagram

Description

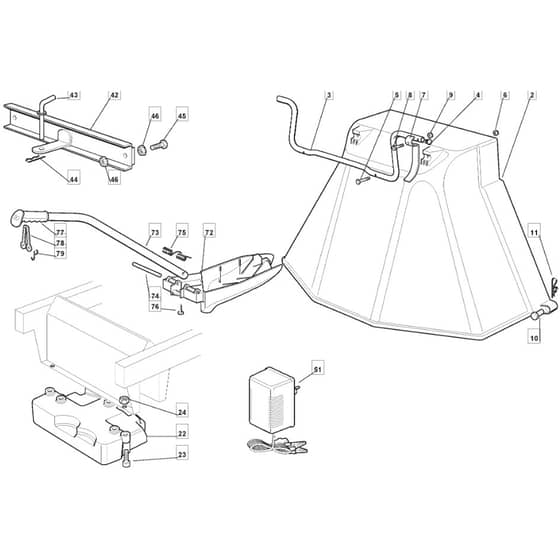

Mountfield 1436M Parts Diagram

Product Name - 1436M

Model Year - 2006

Model Type - JTP 92

Art.N - 299951383/MO6

	Part No.	Details
4	MO118566113/0 Available to backorder	Cap	£1.55 £1.29
5	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO325547053/0 Available to backorder	Plate	£14.82 £12.35
8	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
10	MO125510022/1 In stock	Pin	£3.10 £2.58
11	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
23	MO112760520/0 Available to backorder	Screw	£1.55 £1.29
24	MO112155000/0 In stock	Nut	£1.55 £1.29
43	MO125510021/1 In stock	Hitch Pin	£11.10 £9.25
44	MO124487999/0 Available to backorder	Spring Pin	£1.84 £1.53
45	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
46	MO112293201/0 In stock	Nut	£1.70 £1.42
51	MO1134-9250-01 In stock	Battery Charger	£60.08 £50.07
72	MO325140093/0 Available to backorder	Deflector	£30.98 £25.82
73	MO325394007/0 Available to backorder	Handle	£22.81 £19.01
74	MO125510077/0 In stock	Pin	£3.38 £2.82
75	MO125430245/0 In stock	Spring	£3.52 £2.93
76	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
77	MO325280000/1 In stock	Handgrip	£3.10 £2.58
78	MO125840011/1 In stock	Tie Rod	£7.18 £5.98
79	MO125253004/0 In stock	Fixing Hook	£1.55 £1.29
