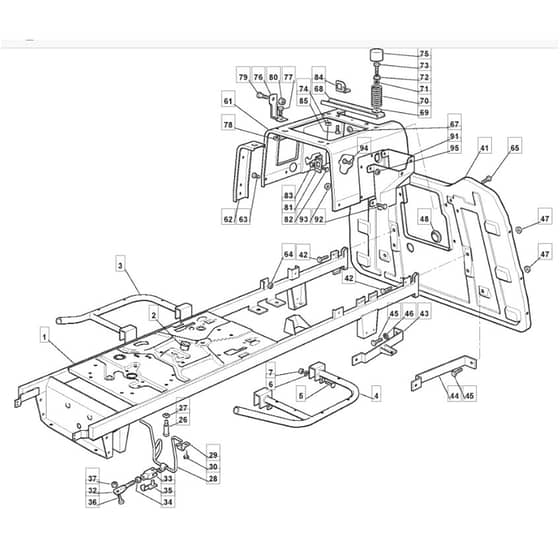

1436M - 2006 - 299951383/MO6 - Mountfield Ride On Mower Frame Diagram

Name: 1436M - 2006 - 299951383/MO6 - Mountfield Ride On Mower Frame Diagram
SKU: 1436m_299951383_mo6_frame-group
Price: 1.16 GBP
Availability: InStock

Part No. 1436m_299951383_mo6_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436M - 2006 - 299951383/MO6 - Mountfield Ride On Mower Frame Diagram

Description

Mountfield 1436M Parts Diagram

Product Name - 1436M

Model Year - 2006

Model Type - JTP 92

Art.N - 299951383/MO6

	Part No.	Details
2	MO125034001/0 Available to backorder	Brass	£3.79 £3.16
5	MO112815240/0 Available to backorder	Screw	£1.55 £1.29
6	MO112523040/0 In stock	Washer	£1.55 £1.29
7	MO112154510/0 In stock	Nut	£1.55 £1.29
26	MO125580023/0 Available to backorder	Belt Guide Peg	£7.81 £6.51
27	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
30	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
32	MO382000505/0 Available to backorder	Tie Rod	£23.09 £19.24
33	MO118399000/0 Available to backorder	Fork	£17.23 £14.36
34	MO112292100/0 Available to backorder	Nut	£1.39 £1.16
35	MO118210200/0 Available to backorder	Clip	£6.46 £5.38
36	MO112793102/0 In stock	Screw	£1.55 £1.29
37	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
42	MO112792611/0 In stock	Screw	£1.55 £1.29
46	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
47	MO112293201/0 In stock	Nut	£1.70 £1.42
63	MO112790781/0 In stock	Screw	£1.55 £1.29
64	MO112292102/0 In stock	Nut	£1.70 £1.42
69	MO112523060/0 In stock	Washer	£1.55 £1.29
70	MO125430205/1 Available to backorder	Spring	£5.92 £4.93
71	MO112521350/0 In stock	Washer	£1.55 £1.29
73	MO125943001/0 Available to backorder	Screw	£1.55 £1.29
74	MO112360420/0 Available to backorder	Nut	£1.55 £1.29
75	MO325122000/2 Available to backorder	Protection Hood	£1.63 £1.36
79	MO122524970/2 Available to backorder	Fulcrum Pin	£1.90 £1.58
80	MO112155010/0 In stock	Nut	£2.11 £1.76
81	MO325755016/0 Available to backorder	Bracket	£1.97 £1.64
82	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
83	MO112154330/0 In stock	Nut	£1.55 £1.29
85	MO112731580/0 Available to backorder	Screw	£1.63 £1.36
