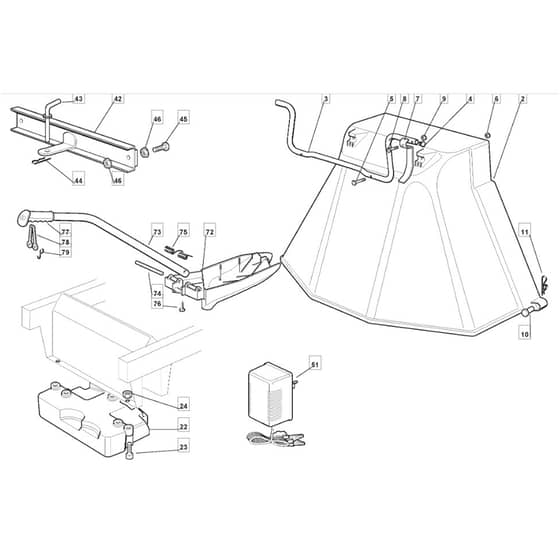

1436M - 2005 - 13-2651-15 - Mountfield Ride On Mower Options Diagram

Name: 1436M - 2005 - 13-2651-15 - Mountfield Ride On Mower Options Diagram
SKU: 1436m_13_2651_15_options-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436M - 2005 - 13-2651-15 - Mountfield Ride On Mower Options Diagram

Description

Mountfield 1436M Parts Diagram

Product Name - 1436M

Model Year - 2005

Model Type - JTP 92

Art.N - 13-2651-15

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382400002/0 Available to backorder	Ejection Guard	£92.94 £77.45
4	MO118566113/0 Available to backorder	Cap	£1.55 £1.29
5	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO325547053/0 Available to backorder	Plate	£14.82 £12.35
8	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
10	MO125510022/1 Available to backorder	Pin	£3.10 £2.58
11	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
23	MO112760520/0 Available to backorder	Screw	£1.55 £1.29
24	MO112155000/0 In stock	Nut	£1.55 £1.29
43	MO125510021/1 In stock	Hitch Pin	£11.12 £9.27
44	MO124487999/0 Available to backorder	Spring Pin	£1.82 £1.52
45	MO112793301/0 In stock	Screw	£1.55 £1.29
46	MO112293201/0 In stock	Nut	£1.69 £1.41
51	MO1134-9250-01 In stock	Battery Charger	£60.06 £50.05
72	MO325140093/0 Available to backorder	Deflector	£30.97 £25.81
73	MO325394007/0 Available to backorder	Handle	£22.81 £19.01
74	MO125510077/0 Available to backorder	Pin	£3.38 £2.82
75	MO125430245/0 Available to backorder	Spring	£3.52 £2.93
76	MO112735410/0 Available to backorder	Screw	£1.55 £1.29
77	MO325280000/1 Available to backorder	Handgrip	£3.10 £2.58
78	MO125840011/1 In stock	Tie Rod	£7.19 £5.99
79	MO125253004/0 Available to backorder	Fixing Hook	£1.55 £1.29
