1436M - 2004 - 13-2651-14 - Mountfield Ride On Mower Deck Engagement Diagram

Name: 1436M - 2004 - 13-2651-14 - Mountfield Ride On Mower Deck Engagement Diagram
SKU: 1436m_13_2651_14_deck_engagement-group
Price: 1.16 GBP
Availability: InStock

Part No. 1436m_13_2651_14_deck_engagement-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436M - 2004 - 13-2651-14 - Mountfield Ride On Mower Deck Engagement Diagram

Description

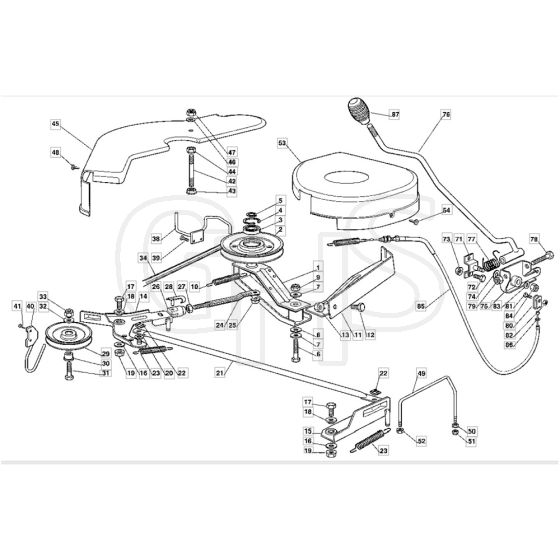

Mountfield 1436M Parts Diagram

Product Name - 1436M

Model Year - 2004

Model Type - NJ 92

Art.N - 13-2651-14

	Part No.	Details
1	MO382318141/2 In stock	Tension Arm	£36.59 £30.49
2	MO125601564/1 Available to backorder	Idler Pulley	£45.04 £37.53
3	MO119216048/0 In stock	Ball Bearing	£18.31 £15.26
4	MO112610800/0 In stock	Circlip	£1.70 £1.42
5	MO112609200/0 Available to backorder	Clock Ring	£1.63 £1.36
6	MO112692080/0 Available to backorder	Screw	£1.63 £1.36
7	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
10	MO122450500/0 Available to backorder	Spring	£3.10 £2.58
11	MO382774215/3 Available to backorder	Wire Holder	£30.98 £25.82
12	MO9997-0816-16 In stock	Screw	£1.55 £1.29
13	MO112293201/0 In stock	Nut	£1.70 £1.42
14	MO382318143/2 Available to backorder	Lever-R	£39.42 £32.85
15	MO382318148/0 Available to backorder	Lever-L	£26.64 £22.20
16	MO322672152/0 Available to backorder	Washer	£1.84 £1.53
18	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
20	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
21	MO325033024/0 Available to backorder	Rod	£13.15 £10.96
22	MO112436050/0 In stock	Lock Plate	£1.84 £1.53
23	MO125430229/1 Available to backorder	Spring	£8.38 £6.98
26	MO118399000/0 Available to backorder	Fork	£17.23 £14.36
27	MO112292100/0 Available to backorder	Nut	£1.39 £1.16
28	MO118210200/0 Available to backorder	Clip Bolt	£6.46 £5.38
29	MO125601555/0 In stock	Belt Roller	£29.28 £24.40
30	MO125160007/1 Available to backorder	Spacer	£3.25 £2.71
31	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
32	MO112523060/0 In stock	Washer	£1.55 £1.29
33	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
34	MO135065700/0 In stock	Hexagon Belt	£109.09 £90.91
38	MO125270301/0 Available to backorder	Belt Guide	£43.34 £36.12
39	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
40	MO125270304/1 Available to backorder	Belt Guide	£20.40 £17.00
41	MO9847-8016-16 Available to backorder	Screw	£1.97 £1.64
45	MO125060102/0 In stock	Cover	£6.64 £5.53
48	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
52	MO112292102/0 In stock	Nut	£1.70 £1.42
53	MO125060103/0 Available to backorder	Belt Cover	£9.65 £8.04
71	MO382785073/0 Available to backorder	Support	£30.98 £25.82
74	MO322672151/0 Available to backorder	Washer	£1.84 £1.53
76	MO382318135/0 Available to backorder	Engagement Lever	£71.52 £59.60
78	MO112692050/0 In stock	Screw	£1.84 £1.53
80	MO322061337/0 Available to backorder	Connecting Fork	£1.55 £1.29
81	MO9997-0620-16 Available to backorder	Screw	£1.63 £1.36
82	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
84	MO9712-0831-02 Available to backorder	Nut	£5.39 £4.49
85	MO382004604/3 In stock	Pto-Wire	£39.42 £32.85
87	MO125394510/0 In stock	Knob	£4.24 £3.53
