1436M - 2002 - 13-2651-12 - Mountfield Ride On Mower Controls Diagram

Name: 1436M - 2002 - 13-2651-12 - Mountfield Ride On Mower Controls Diagram
SKU: 1436m_13_2651_12_controls-group
Price: 1.16 GBP
Availability: InStock

Part No. 1436m_13_2651_12_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

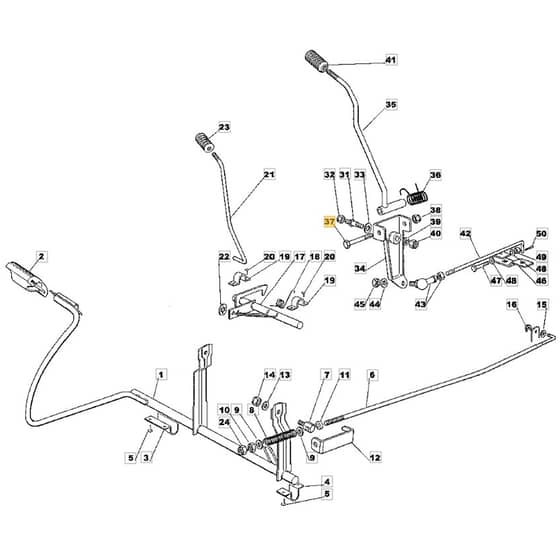

1436M - 2002 - 13-2651-12 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 1436M Parts Diagram

Product Name - 1436M

Model Year - 2002

Model Type - NJ 92

Art.N - 13-2651-12

	Part No.	Details
1	MO382500002/1 Available to backorder	Brake Pedal	£64.75 £53.96
2	MO125110269/0 Available to backorder	Pedal Cover	£3.66 £3.05
3	MO325547039/0 Available to backorder	Clamp	£4.50 £3.75
4	MO325547041/1 Available to backorder	Clamp	£5.34 £4.45
6	MO125033036/0 Available to backorder	Brake Rod	£36.59 £30.49
8	MO25430236/0 Available to backorder	Spring	£1.55 £1.29
10	MO112295200/0 In stock	Nut	£1.39 £1.16
11	MO125160026/0 Available to backorder	Spacer	£6.77 £5.64
12	MO325774275/1 Available to backorder	Clamp	£3.52 £2.93
13	MO112523040/0 In stock	Washer	£1.55 £1.29
14	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
15	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
16	MO112436050/0 In stock	Lock Plate	£1.84 £1.53
17	MO382000361/0 Available to backorder	Axle	£26.48 £22.07
19	MO325547049/0 Available to backorder	Clamp	£3.10 £2.58
20	MO9847-8016-16 Available to backorder	Screw	£1.97 £1.64
22	MO112604898/0 Available to backorder	Starlock	£1.63 £1.36
23	MO127395050/1 Available to backorder	Knob	£2.94 £2.45
24	MO112156602/0 In stock	Lock Nut	£1.39 £1.16
31	MO125510035/0 In stock	Stud Bolt	£3.66 £3.05
33	MO322672151/0 Available to backorder	Washer	£1.84 £1.53
35	MO382318134/0 Available to backorder	Gear Shift Lever	£45.04 £37.53
36	MO125430226/0 Available to backorder	Spring	£2.24 £1.87
37	MO112692050/0 In stock	Screw	£1.84 £1.53
38	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
39	MO112523060/0 In stock	Washer	£1.55 £1.29
40	MO9712-0831-02 Available to backorder	Nut	£5.39 £4.49
41	MO125394510/0 In stock	Knob	£4.24 £3.53
42	MO125033012/0 Available to backorder	Shifter Rod	£10.00 £8.33
43	MO122746610/0 Available to backorder	Ball Joint	£21.12 £17.60
44	MO112583500/0 In stock	Washer	£1.55 £1.29
45	MO112293200/0 In stock	Nut	£1.55 £1.29
46	MO325318128/1 Available to backorder	Gearshift Arm	£4.64 £3.87
47	MO112689500/0 Available to backorder	Screw	£1.63 £1.36
48	MO112521360/0 In stock	Washer	£1.55 £1.29
