1436H - 2009 - 2T2642483/UM9 - Mountfield Ride On Mower Chassis Diagram

Description

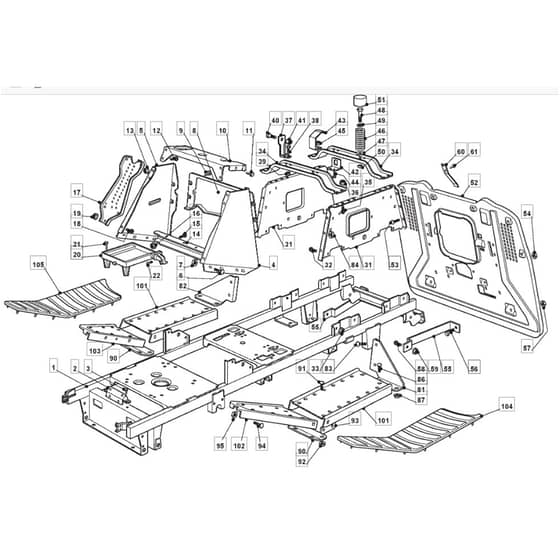

Mountfield 1436H Parts Diagram

Product Name - 1436H

Model Year - 2009

Model Type - NJS 92 Hydro

Art.N - 2T2642483/UM9

	Part No.	Details
2	MO382774253/0 Available to backorder	Clamp	£7.18 £5.98
3	MO112735122/0 Available to backorder	Screw	£1.55 £1.29
4	MO325785243/1 Available to backorder	Left Dashboard Support	£29.57 £24.64
5	MO325785245/0 Available to backorder	Right Dashboard Support	£22.26 £18.55
8	MO382785151/1 Available to backorder	Rear Dashboard Support	£16.82 £14.02
10	MO325785255/0 Available to backorder	Central Dashboard Support	£8.22 £6.85
11	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
12	MO112815200/0 In stock	Screw	£1.55 £1.29
13	MO112292102/0 In stock	Nut	£1.70 £1.42
14	MO325785241/0 Available to backorder	Support	£7.14 £5.95
17	MO382785153/1 Available to backorder	Dashboard Support	£15.42 £12.85
21	MO112760490/0 Available to backorder	Screw	£6.19 £5.16
31	MO325785249/0 Available to backorder	Seat Support	£33.79 £28.16
34	MO325785257/1 Available to backorder	Seat Support	£12.46 £10.38
35	MO112818690/0 In stock	Screw	£1.55 £1.29
36	MO112293201/0 In stock	Nut	£1.70 £1.42
37	MO325755039/0 Available to backorder	Bracket	£7.73 £6.44
38	MO112792611/0 In stock	Screw	£1.55 £1.29
40	MO122524970/2 Available to backorder	Fulcrum Pin	£1.90 £1.58
41	MO112155010/0 In stock	Nut	£2.11 £1.76
42	MO325755043/0 Available to backorder	Bracket	£2.24 £1.87
43	MO325430253/0 Available to backorder	Micro Seat Protect Spring	£5.22 £4.35
44	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
45	MO112154330/0 In stock	Nut	£1.55 £1.29
46	MO125430257/1 Available to backorder	Spring	£12.53 £10.44
47	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
48	MO112760515/0 Available to backorder	Screw	£1.63 £1.36
49	MO122671653/0 Available to backorder	Washer	£1.63 £1.36
50	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
51	MO325122000/2 Available to backorder	Cap	£1.63 £1.36
52	MO382547041/1 Available to backorder	Rear Plate. Black	£102.77 £85.64
55	MO325650119/0 Available to backorder	Plate Stiffening	£13.50 £11.25
60	MO127430600/0 Available to backorder	Spring	£2.82 £2.35
91	MO112815206/0 In stock	Screw	£1.55 £1.29
103	MO382510081/1 Available to backorder	Right Footboard Support	£76.72 £63.93
104	MO325110327/0 Available to backorder	Left Footboard Cover	£18.16 £15.13
105	MO325110326/0 Available to backorder	Right Footboard Cover	£19.86 £16.55
