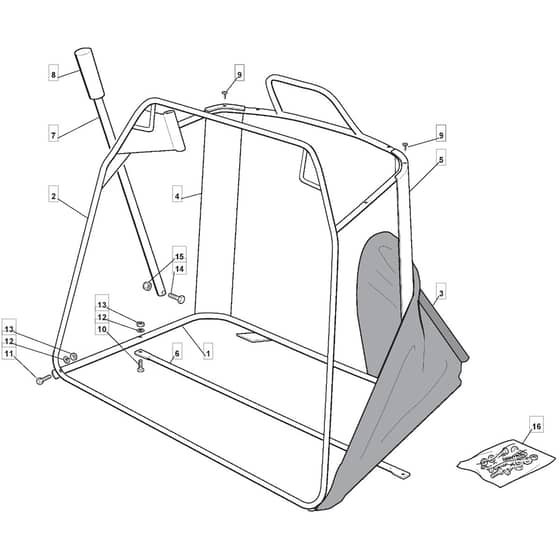

1436H - 2005 - 13-2652-15 - Mountfield Ride On Mower Grasscatcher Mobile Diagram

Name: 1436H - 2005 - 13-2652-15 - Mountfield Ride On Mower Grasscatcher Mobile Diagram
SKU: 1436h_13_2652_15_grasscatcher_mobile-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436H - 2005 - 13-2652-15 - Mountfield Ride On Mower Grasscatcher Mobile Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2005

Model Type - JTP 92 Hydro

Art.N - 13-2652-15

Be the first to review this product

0 product questions

	Part No.	Details
2	MO382800014/1 Available to backorder	Grassbox Upper Frame	£152.77 £127.31
3	MO182105998/0 Available to backorder	Grasscatcher	£87.28 £72.73
4	MO325032005/0 Available to backorder	Right Angular Support	£29.28 £24.40
7	MO125869029/1 Available to backorder	Grasscatcher Lifting Tube	£29.56 £24.63
8	MO125394508/0 Available to backorder	Knob	£5.06 £4.22
9	MO112729601/1 Available to backorder	Screw	£1.48 £1.23
10	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
12	MO112582101/0 Available to backorder	Grower	£1.66 £1.38
13	MO112292100/0 Available to backorder	Nut	£1.40 £1.17
15	MO112154510/0 In stock	Nut	£1.55 £1.29
16	MO382180016/1 Available to backorder	Outfit. Screws	£20.40 £17.00
