1436H - 2003 - 13-2652-13 - Mountfield Ride On Mower Engine Diagram

Description

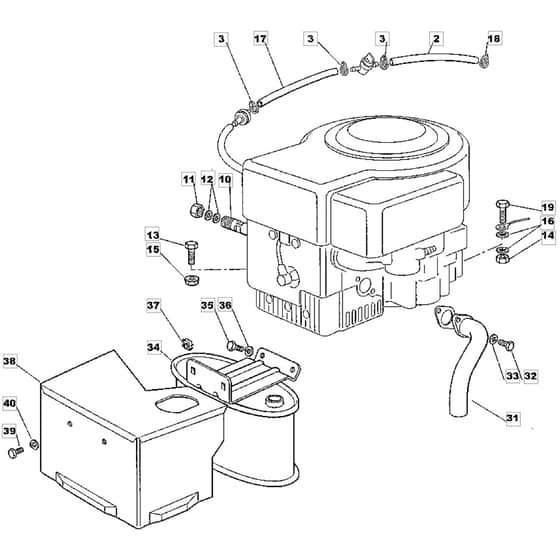

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2003

Model Type - NJ 92 Hydro

Art.N - 13-2652-13

	Part No.	Details
1	MO325869016/1 Available to backorder	Fuel Hose	£8.00 £6.67
3	MO118375062/0 Available to backorder	Hose Clamp	£1.92 £1.60
10	MO125598050/0 Available to backorder	Oil Drain Tube	£8.00 £6.67
11	MO118737849/0 Available to backorder	Oil Drain Plug	£2.53 £2.11
12	MO118401001/1 Available to backorder	Oil Seal	£1.55 £1.29
13	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO112293201/0 In stock	Nut	£1.70 £1.42
16	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
17	MO325869006/1 Available to backorder	Fuel Hose	£6.32 £5.27
18	MO118375053/0 Available to backorder	Hose Clamp	£1.97 £1.64
19	MO9997-0840-16 Available to backorder	Screw	£1.55 £1.29
32	MO9988-3619-16 Available to backorder	Screw	£2.53 £2.11
33	MO112583500/0 In stock	Washer	£1.55 £1.29
35	MO9997-0820-16 In stock	Screw	£1.55 £1.29
37	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
39	MO9997-0816-16 In stock	Screw	£1.55 £1.29
