1436H - 2002 - 13-2652-12 - Mountfield Ride On Mower Steering Diagram

Description

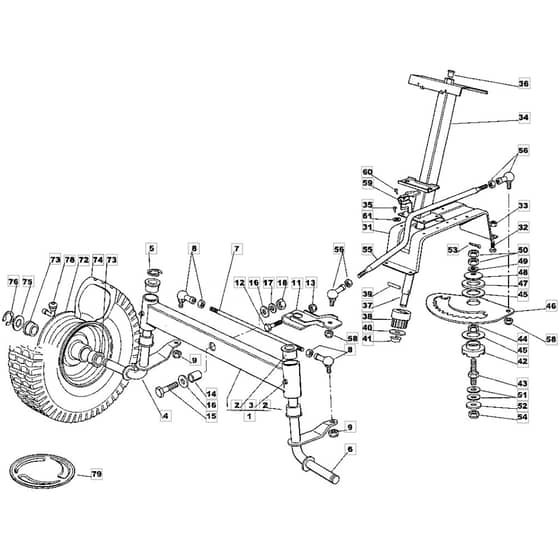

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2002

Model Type - NJ 92 Hydro

Art.N - 13-2652-12

Be the first to review this product

0 product questions

	Part No.	Details
1	MO182034008/0 Available to backorder	Front Wheel Axle	£140.77 £117.31
2	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
3	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
4	MO382230355/1 Available to backorder	Stub Axle-R	£31.92 £26.60
5	MO112001000/0 Available to backorder	Circlip	£1.82 £1.52
6	MO382230357/1 Available to backorder	Stub Axle-L	£36.23 £30.19
7	MO125840006/0 Available to backorder	Tie Rod	£16.61 £13.84
11	MO325318142/0 Available to backorder	Steering Arm	£15.07 £12.56
12	MO112692390/0 Available to backorder	Screw	£1.48 £1.23
13	MO112156602/0 In stock	Lock Nut	£1.40 £1.17
14	MO125160016/1 Available to backorder	Spacer	£6.20 £5.17
15	MO112692695/0 Available to backorder	Screw	£1.55 £1.29
16	MO112523100/0 Available to backorder	Washer	£1.97 £1.64
17	MO112587100/0 Available to backorder	Washer	£1.55 £1.29
18	MO112295300/0 Available to backorder	Nut	£1.55 £1.29
32	MO9997-0816-16 Available to backorder	Screw	£1.55 £1.29
33	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
38	MO125570000/2 In stock	Steering Pinion	Was £12.82 £10.68 Special Price £8.14 £6.78
39	MO9595-0262-00 Available to backorder	Locating Pin	£1.69 £1.41
40	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
41	MO112436030/0 In stock	Lock Plate	£1.82 £1.52
42	MO125040617/0 Available to backorder	Bushing	£10.70 £8.92
43	MO125510065/3 Available to backorder	Stud Bolt	£10.31 £8.59
44	MO112295200/0 In stock	Nut	£1.40 £1.17
45	MO325670012/0 Available to backorder	Washer	£2.40 £2.00
46	MO325735507/0 Available to backorder	Steering Sector	£69.70 £58.08
47	MO325670014/1 Available to backorder	Washer	£4.45 £3.71
48	MO122160400/0 In stock	Elastic Washer	£1.82 £1.52
49	MO112521360/0 In stock	Washer	£1.55 £1.29
51	MO322672150/0 Available to backorder	Washer	£1.82 £1.52
52	MO112523080/0 In stock	Washer	£1.55 £1.29
55	MO125033025/0 Available to backorder	Steering Rod	£56.32 £46.93
56	MO122746609/0 Available to backorder	Ball Joint	£21.83 £18.19
60	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
72	MO182000590/1 Available to backorder	Rim-Front	£68.99 £57.49
73	MO125122200/2 In stock	Bearing	£11.82 £9.85
74	MO125590000/0 Available to backorder	Tire (Turf Saver)	£38.45 £32.04
75	MO125670005/2 In stock	Washer	£4.08 £3.40
78	MO125950002/0 Available to backorder	Valve (90º)	£5.64 £4.70
79	MO382110252/0 Available to backorder	Hub Cover	£15.76 £13.13
