Description

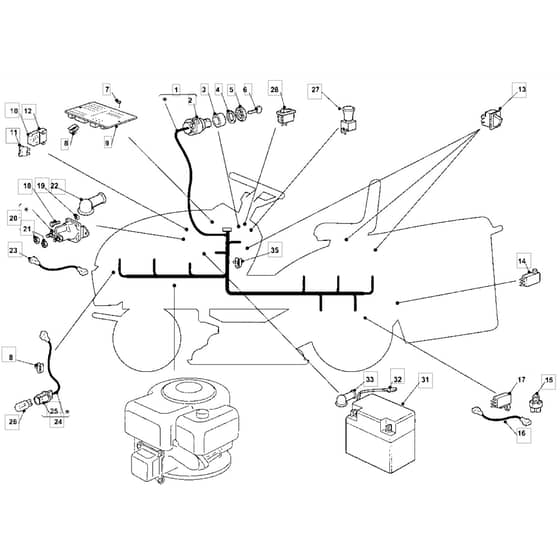

Mountfield 1435E Parts Diagram

Product Name - 1435 E

Model Year - 2007

Model Type - N/A

Art.N - 13-2688-12

Ref. Img. Part No. Details
  1 Wiring Harness
Wiring Harness
MO182040143/0 Out of stock
Wiring Harness
£230.26 £191.88

  2 Starting Switch
Starting Switch
MO118450072/0 In stock
Starting Switch
£28.20 £23.50

  3 Spacer
Spacer
MO118550136/0 Out of stock
Spacer
£1.49 £1.24

  4 Washer
Washer
MO118550135/0 Out of stock
Washer
£1.90 £1.58

  5 Ring Nut
Ring Nut
MO118400862/0 Out of stock
Ring Nut
£5.02 £4.18

  6 Starting Key
Starting Key
MO118210022/0 Out of stock
Starting Key
£9.24 £7.70

  7 Screw
Screw
MO112727810/0 Out of stock
Screw
£1.49 £1.24

  9 Electronic Card
Electronic Card
MO125722430/1 Out of stock
Electronic Card
£94.20 £78.50

  10 Cover
Cover
MO133215000/0 Out of stock
Cover
£3.38 £2.82

  11 Fuse 10 A 10A
Fuse 10 A 10A
MO133340040/0 Out of stock
Fuse 10 A 10A
£2.17 £1.81

  11 Fuse 25 A 25A
Fuse 25 A 25A
MO133340036/0 Out of stock
Fuse 25 A 25A
£1.63 £1.36

  12 Fuse Carrier
Fuse Carrier
MO133500007/0 Out of stock
Fuse Carrier
£7.03 £5.86

  13 Microswitch
Microswitch
MO119410622/1 In stock
Microswitch
£6.00 £5.00

  14 Microswitch
Microswitch
MO119410605/1 In stock
Microswitch
£36.00 £30.00

  15 Neutral Switch
Neutral Switch
MOF000-7034-00 Out of stock
Neutral Switch
£175.09 £145.91

  16 Cable
Cable
MO125065026/0 Out of stock
Cable
£8.27 £6.89

  18 Screw
Screw
MO112791213/1 Out of stock
Screw
£1.63 £1.36

  19 Nut
Nut
MO112292102/0 In stock
Nut
£1.63 £1.36

  20 Starter Relay Pos 21 incl.
Starter Relay Pos 21 incl.
MO118736113/0 In stock
Starter Relay Pos 21 incl.
£34.68 £28.90

  21 Nut
Nut
MO9743-5121-32 Out of stock
Nut
£1.36 £1.13

  22 Protection
Protection
MO118564864/1 Out of stock
Protection
£5.69 £4.74

  23 Cable
Cable
MO125065017/0 Out of stock
Cable
£9.07 £7.56

  24 Lamp Holder Harness Used for 13-2688-12
Lamp Holder Harness Used for 13-2688-12
MO182040070/0 Out of stock
Lamp Holder Harness Used for 13-2688-12
£16.25 £13.54

  25 Lamp Holder Not for 13-2687-12
Lamp Holder Not for 13-2687-12
MO133500030/0 Out of stock
Lamp Holder Not for 13-2687-12
£3.65 £3.04

  26 Lamp For Lights Not for 13-2687-12
Lamp For Lights Not for 13-2687-12
MO118459100/0 Out of stock
Lamp For Lights Not for 13-2687-12
£2.04 £1.70

  27 Switch
Switch
MO118450068/1 Out of stock
Switch
£50.11 £41.76

  28 Headlight Switch
Headlight Switch
MO118450084/0 Out of stock
Headlight Switch
£4.33 £3.61

  31 Battery 12V 18Ah
Battery 12V 18Ah
MO118120068/0 In stock
Battery 12V 18Ah
£96.12 £80.10

  32 Elastic Tie-Rod
Elastic Tie-Rod
MO125840027/0 Out of stock
Elastic Tie-Rod
£23.02 £19.18

  33 Protection
Protection
MO118564861/2 Out of stock
Protection
£6.50 £5.42

  35 Cable Clip
Cable Clip
MO133320506/0 Out of stock
Cable Clip
£1.36 £1.13
