1430M - 2012-2013 - 2T2010483/M11 - Mountfield Ride On Mower Guards Diagram

Description

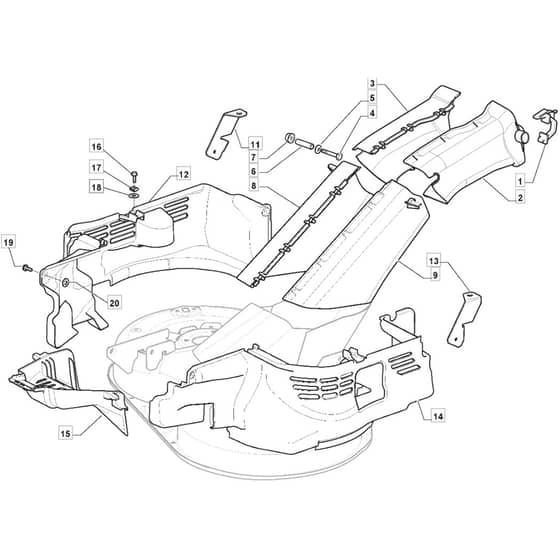

Mountfield 1430M Parts Diagram

Product Name - 1430

Model Year - 2012-2013

Model Type - MP 84

Art.N - 2T2010483/M11

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325774499/0 Available to backorder	Clamp	£2.44 £2.03
2	MO325108057/0 Available to backorder	Conveyor	£15.90 £13.25
3	MO325108056/0 Available to backorder	Conveyor	£15.97 £13.31
4	MO112792425/0 Available to backorder	Screw	£1.69 £1.41
5	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
6	MO125160109/0 Available to backorder	Spacer	£1.69 £1.41
7	MO112292102/0 In stock	Nut	£1.69 £1.41
8	MO325108064/0 In stock	Conveyor	£18.43 £15.36
9	MO325108065/0 In stock	Conveyor	£18.43 £15.36
11	MO325774527/0 Available to backorder	Clamp	£3.24 £2.70
12	MO325060168/0 Available to backorder	Case	£39.42 £32.85
13	MO325774529/0 Available to backorder	Clamp	£3.67 £3.06
14	MO325060165/0 Available to backorder	Case	£39.35 £32.79
15	MO325060166/0 Available to backorder	Guard	£12.38 £10.32
16	MO112789008/0 Available to backorder	Screw	£1.82 £1.52
17	MO112437503/0 Available to backorder	Plate	£1.97 £1.64
18	MO112523020/0 In stock	Washer From 01-9-2014	£1.55 £1.29
18	MO112521320/0 Available to backorder	Washer To 31-8-2014	£1.55 £1.29
19	MO125943011/0 Available to backorder	Screw	£9.50 £7.92
20	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
