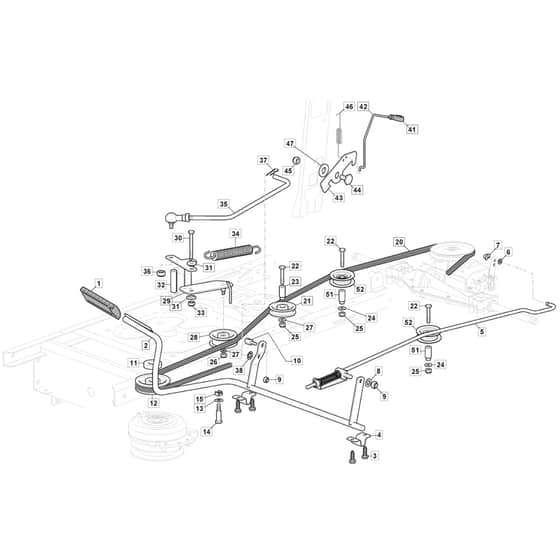

1430M - 2012-2013 - 2T2010483/M11 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 1430M Parts Diagram

Product Name - 1430

Model Year - 2012-2013

Model Type - MP 84

Art.N - 2T2010483/M11

	Part No.	Details
1	MO325394532/0 Available to backorder	Knob	£5.22 £4.35
1	MO325110391/0 Available to backorder	Clamp Cover	£6.77 £5.64
2	MO382500047/2 Available to backorder	Pedal	£53.50 £44.58
3	MO112735599/0 In stock	Screw	£1.55 £1.29
4	MO325547231/1 Available to backorder	Plate	£4.37 £3.64
5	MO382000568/0 Available to backorder	Rod	£21.47 £17.89
6	MO112521350/0 In stock	Washer	£1.55 £1.29
7	MO112436050/0 In stock	Plate	£1.84 £1.53
8	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
10	MO125510116/0 Available to backorder	Pin	£3.66 £3.05
11	MO125160021/0 Available to backorder	Spacer	£7.52 £6.27
12	MO125601567/0 Available to backorder	Pulley	£29.57 £24.64
13	MO112524010/0 Available to backorder	Washer	£1.84 £1.53
14	MO125580030/0 Available to backorder	Belt Guide Peg	£4.50 £3.75
15	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
20	MO135062018/0LC In stock	Belt	£38.44 £32.03
21	MO325601599/0 In stock	Pulley Bearing hole ø15 From 01-9-2013	£19.18 £15.98
21	MO125601555/0 In stock	Pulley Bearing hole ø16 To 31-8-2013	£29.28 £24.40
22	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
23	MO125160107/0 Available to backorder	Spacer From S.N 00088194	£2.82 £2.35
24	MO112523060/0 In stock	Washer	£1.55 £1.29
25	MO112155000/0 In stock	Nut	£1.55 £1.29
28	MO125601554/0 In stock	Pulley	£25.66 £21.38
29	MO382318283/0 Available to backorder	Lever From 01-9-2013	£18.48 £15.40
30	MO112691600/0 Available to backorder	Screw	£1.84 £1.53
31	MO125038021/0 Available to backorder	Bushing From 01-9-2016	£1.33 £1.11
31	MO125038002/1 Available to backorder	Bushing To 31-8-2016	£1.55 £1.29
32	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
34	MO125430262/0 Available to backorder	Spring	£5.76 £4.80
35	MO382820016/1 Available to backorder	Tie Rod	£16.75 £13.96
36	MO112293201/0 In stock	Nut	£1.70 £1.42
37	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
38	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
41	MO125394509/1 In stock	Knob From 01-9-2013	£2.53 £2.11
41	MOREPLA0000050 Available to backorder	Knob	£6.05 £5.04
42	MO125033113/0 Available to backorder	Rod From 01-9-2013	£3.52 £2.93
43	MO325253011/1 Available to backorder	Hook	£3.66 £3.05
44	MO122524970/3 Available to backorder	Pin From 01-9-2014	£1.70 £1.42
44	MO122524970/2 Available to backorder	Fulcrum Pin To 31-8-2014	£1.90 £1.58
46	MO125430213/0 Available to backorder	Spring	£1.70 £1.42
51	MO125160111/0 Available to backorder	Spacer	£4.24 £3.53
52	MO125601612/0 In stock	Pulley	£23.57 £19.64
