140 E - 2014 - 293380063/FER - Castel Garden Rotary Mower Electric Walkbehind Diagram

Name: 140 E - 2014 - 293380063/FER - Castel Garden Rotary Mower Electric Walkbehind Diagram
SKU: 140_e_293380063_fer_electric_walkbehind-group
Price: 1.05 GBP
Availability: InStock

Part No. 140_e_293380063_fer_electric_walkbehind-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

140 E - 2014 - 293380063/FER - Castel Garden Rotary Mower Electric Walkbehind Diagram

Description

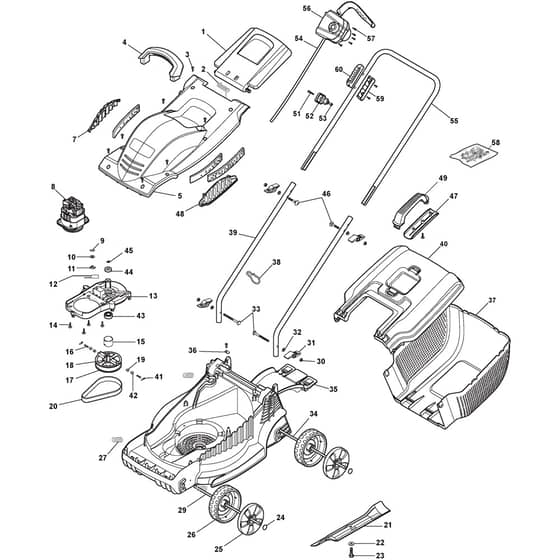

Castel Garden 140 E Parts Diagram

Product Name - 140 E

Model Year - 2014

Model Type - E 380

Art.N - 293380063/FER

Engine Model -

	Part No.	Details
2	MO118810096/0 Available to backorder	Spring	£2.40 £2.00
3	MO112728099/1 Available to backorder	Screw	£1.63 £1.36
4	MO118810169/0 Available to backorder	Cover. Grey	£5.76 £4.80
5	MO118810165/1 Available to backorder	Engine Cover	£72.91 £60.76
7	MO118810167/0 Available to backorder	Right Window. Grey	£3.25 £2.71
9	MO112543001/0 Available to backorder	Washer	£4.93 £4.11
11	MO118801615/0 Available to backorder	Wire Connector	£1.33 £1.11
12	MO118810063/0 Available to backorder	Temperature	£96.18 £80.15
13	MO118810084/0 Available to backorder	Engine Plate	£32.38 £26.98
14	MO118810099/0 Available to backorder	Screw	£2.53 £2.11
15	MO118810106/0 Available to backorder	Brake	£3.79 £3.16
16	MO118810108/0 Available to backorder	Brake Spring	£1.97 £1.64
17	MO118810059/0 Available to backorder	Pulley	£24.78 £20.65
18	MO118810104/0 Available to backorder	Pulley Insert	£24.78 £20.65
20	MO118810092/0 Available to backorder	Belt	£14.94 £12.45
21	MO118810003/0 Available to backorder	Blade	£17.65 £14.71
22	MO122671651/0 In stock	Washer	£1.97 £1.64
23	MO112793312/0 Available to backorder	Screw	£1.55 £1.29
24	MO112604898/0 Available to backorder	Crown Fastener	£1.63 £1.36
25	MO118810168/0 Available to backorder	Hub Cap	£8.72 £7.27
26	MO118810081/0 Available to backorder	Wheel	£5.34 £4.45
27	MO118810109/0 Available to backorder	Spring	£2.94 £2.45
29	MO118810100/0 Available to backorder	Front Wheel Axle	£5.22 £4.35
31	MO118810121/0 Available to backorder	Knob	£4.08 £3.40
32	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
33	MO118810160/0 Available to backorder	Screw	£3.79 £3.16
34	MO118810101/0 Available to backorder	Rear Wheel Axle	£5.65 £4.71
35	MO118810155/0 Available to backorder	Deflector	£5.47 £4.56
37	MO118810152/0 Available to backorder	Grass-Box. Lower Part	£40.82 £34.02
38	MO122192000/1 Available to backorder	Cable Holder	£1.84 £1.53
39	MO118810105/0 Available to backorder	Handle. Lower Part	£35.95 £29.96
40	MO118810154/0 Available to backorder	Grass-Box. Upper Part	£27.17 £22.64
41	MO118810102/0 Available to backorder	Insert	£1.55 £1.29
42	MO118810107/0 Available to backorder	Iron Brake	£2.53 £2.11
43	MO118810070/0 Available to backorder	Bearing	£16.88 £14.07
44	MO118810069/0 Available to backorder	Bearing	£5.65 £4.71
45	MO112000955/0 Available to backorder	Circlip Ø8	£1.33 £1.11
46	MO112727784/0 Available to backorder	Screw	£1.39 £1.16
47	MO118810146/0 Available to backorder	Handle. Lower Part	£2.11 £1.76
48	MO118810151/0 Available to backorder	Left Window. Grey	£3.38 £2.82
49	MO118810144/0 Available to backorder	Handle	£4.08 £3.40
51	MO9943-0516-16 In stock	Screw	£1.26 £1.05
52	MO118810083/0 Available to backorder	Hook	£4.08 £3.40
54	MO118810159/0 Available to backorder	Wire	£10.40 £8.67
55	MO118810075/0 Available to backorder	Handle. Upper Part	£27.25 £22.71
56	MO118810098/0 Available to backorder	Dead Hand Switch	£35.20 £29.33
58	MO118810171/0 Available to backorder	Outfit. Screws	£15.28 £12.73
