135 EN - 2014 - 293320063/FER - Castel Garden Rotary Mower Electric Walkbehind Diagram

Name: 135 EN - 2014 - 293320063/FER - Castel Garden Rotary Mower Electric Walkbehind Diagram
SKU: 135_en_293320063_fer_electric_walkbehind-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

135 EN - 2014 - 293320063/FER - Castel Garden Rotary Mower Electric Walkbehind Diagram

Description

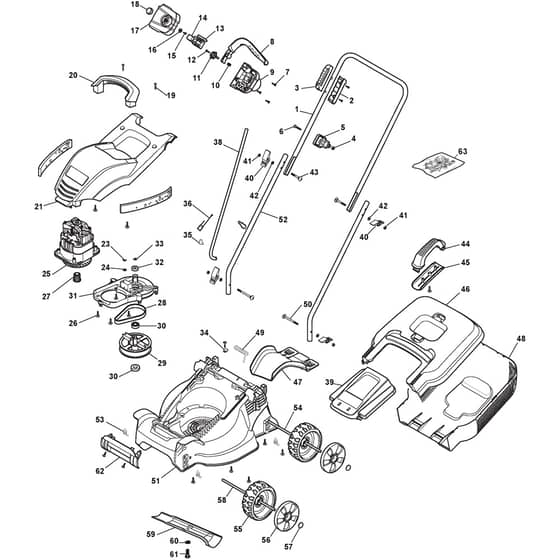

Castel Garden 135 EN Parts Diagram

Product Name - 135 EN

Model Year - 2014

Model Type - E 320

Art.N - 293320063/FER

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118810075/0 Available to backorder	1	£27.24 £22.70
3	MO118810087/0 Available to backorder	Upper Fixation Plate	£2.12 £1.77
5	MO118810161/0 Available to backorder	Hook	£3.24 £2.70
8	MO118810113/0 Available to backorder	Lever	£4.22 £3.52
12	MO9943-0516-16 In stock	Screw	£1.22 £1.02
13	MO118810065/0 Available to backorder	Capacitor	£2.81 £2.34
15	MO123878020/0 Available to backorder	Screw	£1.33 £1.11
16	MO2312100 Available to backorder	Washer	£1.40 £1.17
17	MO118804674/0 Available to backorder	Switchbox Upper	£39.42 £32.85
18	MO118810094/0 Available to backorder	Button. Yellow	£1.55 £1.29
19	MO112728099/1 Available to backorder	Screw	£1.55 £1.29
20	MO118810169/0 Available to backorder	Cover. Grey	£5.76 £4.80
21	MO118810162/0 Available to backorder	Engine Cover	£23.23 £19.36
23	MO112543001/0 Available to backorder	Washer	£4.93 £4.11
26	MO118810099/0 Available to backorder	Screw	£2.53 £2.11
28	MO118810092/0 Available to backorder	Belt	£14.95 £12.46
29	MO118810059/0 Available to backorder	Pulley	£24.78 £20.65
30	MO118810071/0 Available to backorder	Bearing	£16.88 £14.07
31	MO118810084/0 Available to backorder	Engine Plate	£32.38 £26.98
32	MO118810069/0 Available to backorder	Bearing	£5.64 £4.70
33	MO112000955/0 Available to backorder	Circlip Ø8	£1.33 £1.11
36	MO118810057/1 Available to backorder	Temperature	£87.29 £72.74
38	MO118810060/0 Available to backorder	Cable	£9.97 £8.31
39	MO118810164/0 Available to backorder	Stone-Guard	£10.27 £8.56
40	MO118810121/0 Available to backorder	Knob	£4.08 £3.40
42	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
43	MO112727784/0 Available to backorder	Screw	£1.40 £1.17
44	MO118810144/0 Available to backorder	Handle	£4.08 £3.40
45	MO118810146/0 Available to backorder	Handle. Lower Part	£2.12 £1.77
46	MO118810145/0 Available to backorder	Grass-Box. Upper	£18.43 £15.36
47	MO118810085/0 Available to backorder	Knob	£7.19 £5.99
48	MO118810143/0 Available to backorder	Grass-Box. Lower	£35.20 £29.33
49	MO118810096/0 Available to backorder	Spring	£2.40 £2.00
50	MO118810160/0 Available to backorder	Screw	£3.79 £3.16
52	MO118810073/0 Available to backorder	Lower Handle	£20.72 £17.27
53	MO118810078/0 Available to backorder	Spring	£2.95 £2.46
54	MO118810067/0 Available to backorder	Axle. Rear Wheels	£4.66 £3.88
55	MO118810081/0 Available to backorder	Wheel	£5.35 £4.46
56	MO118810168/0 Available to backorder	Hub Cap	£8.74 £7.28
57	MO112604898/0 Available to backorder	Crown Fastener	£1.55 £1.29
58	MO118810066/0 Available to backorder	Axle. Front Wheels	£3.52 £2.93
59	MO118810002/0 Available to backorder	Blade	£13.20 £11.00
60	MO122671651/0 Available to backorder	Washer	£1.97 £1.64
61	MO112793312/0 Available to backorder	Screw	£1.78 £1.48
62	MO118810163/0 Available to backorder	Deck Handle. Grey	£5.06 £4.22
63	MO118810170/0 Available to backorder	Outfit. Screws	£16.06 £13.38
