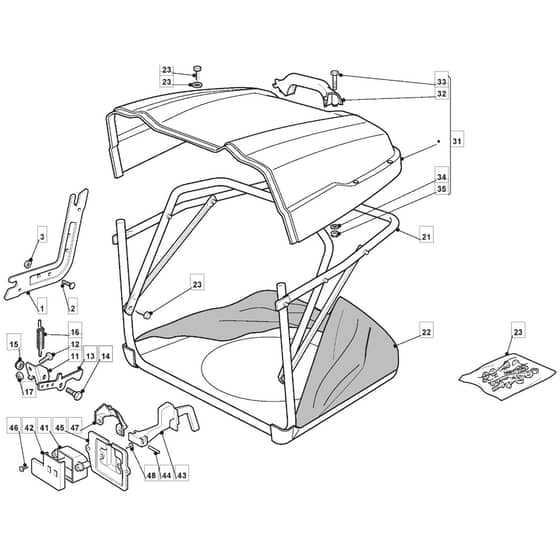

1335M - 2008 - 299954233/M08 - Mountfield Ride On Mower Grasscatcher Diagram

Name: 1335M - 2008 - 299954233/M08 - Mountfield Ride On Mower Grasscatcher Diagram
SKU: 1335m_299954233_m08_grasscatcher-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1335M - 2008 - 299954233/M08 - Mountfield Ride On Mower Grasscatcher Diagram

Description

Mountfield 1335M Parts Diagram

Product Name - 1335 M

Model Year - 2008

Model Type - NJTP 92

Art.N - 299954233/M08

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112293201/0 In stock	Nut	£1.69 £1.41
3	MO112818690/0 Available to backorder	Screw	£1.61 £1.34
11	MO325755031/2 Available to backorder	Bracket From 01-9-2010	£5.06 £4.22
12	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
13	MO325774315/1 Available to backorder	Bracket From 01-9-2010	£3.94 £3.28
14	MO125510080/2 Available to backorder	Pin	£1.40 £1.17
15	MO112292102/0 In stock	Nut	£1.69 £1.41
16	MO122450432/0 In stock	Spring	£1.97 £1.64
17	MO112154330/0 In stock	Nut	£1.55 £1.29
21	MO382800110/0 Available to backorder	Front Frame	£169.31 £141.09
22	MO182105974/0 Available to backorder	Grasscatcher	£139.37 £116.14
23	MO382180047/0 Available to backorder	Screw	£10.91 £9.09
32	MO127394000/0 Available to backorder	Handle	£15.76 £13.13
33	MO112789020/0 Available to backorder	Screw	£1.54 £1.28
34	MO112523020/0 In stock	Washer	£1.55 £1.29
41	MO125600041/0 Available to backorder	Grassc.Full Micro Protection Tcj-F	£3.91 £3.26
42	MO125600042/0 Available to backorder	Grasscatcher Micro Prot Cover	£7.62 £6.35
43	MO125318124/0 Available to backorder	Full Grassc. Microswtich Cover	£1.97 £1.64
44	MO112400030/0 Available to backorder	Pin	£1.82 £1.52
45	MO325785272/1 Available to backorder	Micro Protection	£2.12 £1.77
46	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
47	MO125600048/0 Available to backorder	Empty Micro Grassc.Protection Cover	£1.55 £1.29
48	MO112735110/0 Available to backorder	Flanged Self-Tap Screw 4.8 X 13	£1.55 £1.29
