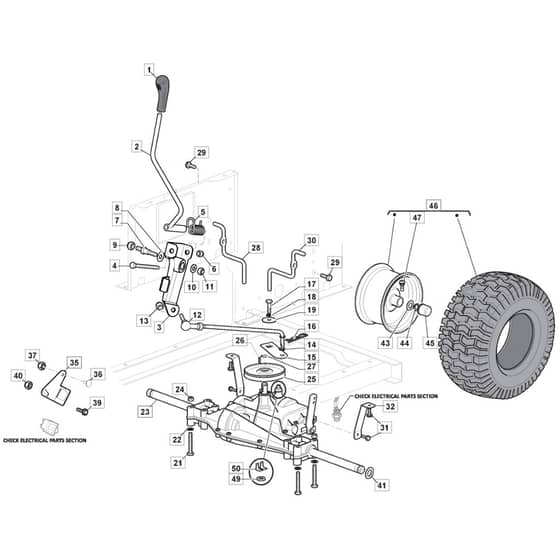

1330M - 2020-2021 - 2T2000483/M20 - Mountfield Ride On Mower Peerless Transmission Diagram

1330M - 2020-2021 - 2T2000483/M20 - Mountfield Ride On Mower Peerless Transmission Diagram
1330M - 2020-2021 - 2T2000483/M20 - Mountfield Ride On Mower Peerless Transmission Diagram

Description

Mountfield 1330M Parts Diagram

Product Name - 1330M

Model Year - 2020-2021

Model Type - MPNS 84

Art.N - 2T2000483/M20

Engine Model - ST 350

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Knob MO325394532/0
Knob
 Out of stock
£5.02 £4.18

  2 Lever MO382318257/0
Lever
 Out of stock
£16.67 £13.89

  3 Clamp MO382774259/1
Clamp
 Out of stock
£12.86 £10.72

  4 Screw MO112692050/0
Screw
 In stock
£1.75 £1.46

  5 Spring MO125430226/0
Spring
 Out of stock
£2.17 £1.81

  7 Pin MO125510035/0
Pin
 Out of stock
£3.53 £2.94

  8 Antifriction Washer MO322672151/0
Antifriction Washer
 Out of stock
£1.75 £1.46

  10 Washer MO112523060/0
Washer
 In stock
£1.49 £1.24

  11 Nut MO112155010/0
Nut
 Out of stock
£2.04 £1.70

  12 Gear Rod Assy MO382000567/1
Gear Rod Assy
 Out of stock
£24.83 £20.69

  13 Nut MO112154210/0
Nut
 In stock
£1.63 £1.36

  14 Washer MO112521340/0
Washer
 Out of stock
£1.36 £1.13

  15 Lever MO325318235/0
Lever
 Out of stock
£2.44 £2.03

  16 Cotter Pin MO112141418/0
Cotter Pin
 In stock
£1.49 £1.24

  17 Screw MO112735520/0
Screw
 Out of stock
£1.49 £1.24

  18 Washer MO112540040/0
Washer
 Out of stock
£1.36 £1.13

  19 Washer MO322680009/0
Washer
 Out of stock
£1.75 £1.46

  21 Screw MO112691600/0
Screw
 Out of stock
£1.75 £1.46

  22 Washer MO112521350/0
Washer
 Out of stock
£1.49 £1.24

  23 Transmission Mst 205-591 From 11-3-2022 MO118400910/4
Transmission Mst 205-591 From 11-3-2022
 Out of stock
£509.23 £424.36

  23 Transmission Mst 205-535H To 10-3-2022 MO118400922/1
Transmission Mst 205-535H To 10-3-2022
 Out of stock
£1,405.63 £1,171.36

  24 Nut MO112155000/0
Nut
 Out of stock
£1.49 £1.24

  25 Pulley MO182601509/0
Pulley
 Out of stock
£73.81 £61.51

  26 Key MO112139430/0
Key
 In stock
£1.90 £1.58

  27 Seeger MO112608950/0
Seeger
 Out of stock
£1.49 £1.24

  28 Belt Guide MO125270329/0
Belt Guide
 Out of stock
£4.20 £3.50

  29 Screw MO112735599/0
Screw
 Out of stock
£1.49 £1.24

  30 Belt Guide MO125270330/0
Belt Guide
 Out of stock
£4.20 £3.50

  31 Screw MO125943009/0
Screw
 Out of stock
£1.56 £1.30

  32 Support MO325785315/0
Support
 Out of stock
£5.42 £4.52

  35 Support To 31-8-2021 MO325785483/0
Support To 31-8-2021
 Out of stock
£4.07 £3.39

  35 Support From 01-9-2021 MO325785483/1
Support From 01-9-2021
 Out of stock
£4.20 £3.50

  36 Screw MO112815200/0
Screw
 In stock
£1.49 £1.24

  37 Nut MO112154510/0
Nut
 In stock
£1.49 £1.24

  39 Screw MO112792611/0
Screw
 Out of stock
£1.49 £1.24

  41 Washer MO125670005/2
Washer
 Out of stock
£3.92 £3.27

  44 Benzing Ring MO112001010/0
Benzing Ring
 Out of stock
£1.75 £1.46

  45 Hub Cover Standard Black MO322110233/0
Hub Cover Standard Black
 Out of stock
£1.63 £1.36

  46 Wheel Assy MO382680104/0
Wheel Assy
 Out of stock
£160.28 £133.57

  47 Valve MO125950000/0
Valve
 Out of stock
£5.15 £4.29

  49 Washer MO112540221/0
Washer
 Out of stock
£4.48 £3.73

  50 Faston Terminal MO133800001/0
Faston Terminal
 Out of stock
£1.36 £1.13


Description

Mountfield 1330M Parts Diagram

Product Name - 1330M

Model Year - 2020-2021

Model Type - MPNS 84

Art.N - 2T2000483/M20

Engine Model - ST 350
