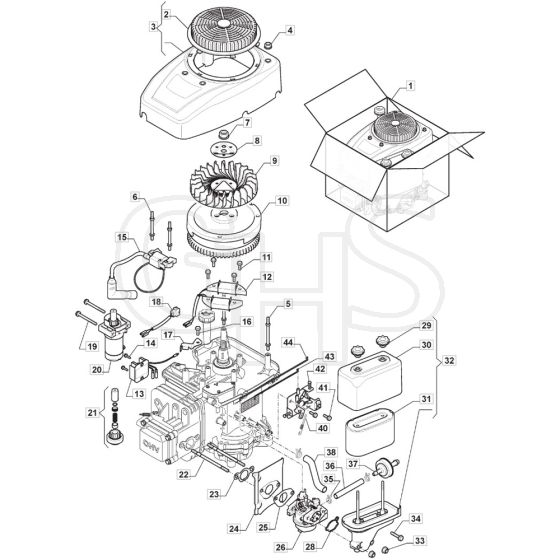

1330M - 2020-2021 - 2T2000483/M20 - Mountfield Ride On Mower Engine Assy Diagram

Name: 1330M - 2020-2021 - 2T2000483/M20 - Mountfield Ride On Mower Engine Assy Diagram
SKU: 1330m_2t2000483_m20_engine_assy-group
Price: 1.01 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1330M - 2020-2021 - 2T2000483/M20 - Mountfield Ride On Mower Engine Assy Diagram

Description

Mountfield 1330M Parts Diagram

Product Name - 1330M

Model Year - 2020-2021

Model Type - MPNS 84

Art.N - 2T2000483/M20

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118551424/1 Out of stock	Engine Assembled	£636.58 £530.48
3	MO118551392/1 Out of stock	Air Intake Grill	£74.50 £62.08
5	MO118551422/0 Out of stock	Stud Bolt	£4.62 £3.85
6	MO118551421/0 Out of stock	Stud Bolt	£4.87 £4.06
7	MO118551417/0 Out of stock	Nut	£2.84 £2.37
8	MO118550236/0 Out of stock	Starter Cup	£5.89 £4.91
9	MO118550235/1 Out of stock	Flywheel Fan	£22.20 £18.50
10	MO118551410/0 Out of stock	Flywheel Ass.Y	£163.58 £136.32
11	MO112792099/0 In stock	Screw	£1.28 £1.07
12	MO118551502/0 Out of stock	Coil Assy. Charge	£57.58 £47.98
13	MO118552639/0 Out of stock	Rectfier	£39.12 £32.60
14	MO9959-0616-16 Out of stock	Screw	£1.49 £1.24
15	MO118552640/0 In stock	Elettronic Coil	£29.52 £24.60
19	MO112692050/0 In stock	Screw	£1.75 £1.46
20	MO118552634/0 In stock	Start Motor Assy	£141.48 £117.90
21	MO118551426/0 Out of stock	Kit Repair	£40.63 £33.86
22	MO118551416/0 Out of stock	Stud Bolt	£6.10 £5.08
23	MO118551395/0 Out of stock	Carburetor Gasket	£1.21 £1.01
24	MO118551397/0 Out of stock	Guard	£8.33 £6.94
25	MO118551394/0 Out of stock	Carburetor Gasket	£1.28 £1.07
26	MO118552601/0 Out of stock	Carburettor	£73.44 £61.20
28	MO118551396/0 Out of stock	Carburetor Gasket	£3.53 £2.94
29	MO118551407/0 Out of stock	Knob	£1.49 £1.24
30	MO118551405/0 Out of stock	Air Cleaner Cover	£16.25 £13.54
31	MO118551406/0 In stock	Air Filter	£16.20 £13.50
32	MO118551404/0 Out of stock	Air Cleaner Assy	£27.94 £23.28
34	MO112674701/0 Out of stock	Screw	£1.63 £1.36
35	MO118550918/0 In stock	Pipe Clip	£1.63 £1.36
36	MO118551420/0 Out of stock	Fuel Pipe	£1.90 £1.58
37	MO118550427/0 In stock	Fuel Filter	£5.04 £4.20
38	MO118551501/0 Out of stock	Breather Pipe	£5.15 £4.29
40	MO118551400/0 Out of stock	Spring	£1.90 £1.58
42	MO118551402/0 Out of stock	Remote Control Assy	£40.63 £33.86
43	MO118551398/0 Out of stock	Choke Control Rod	£2.70 £2.25
44	MO118551399/0 Out of stock	Governor Link	£4.48 £3.73
