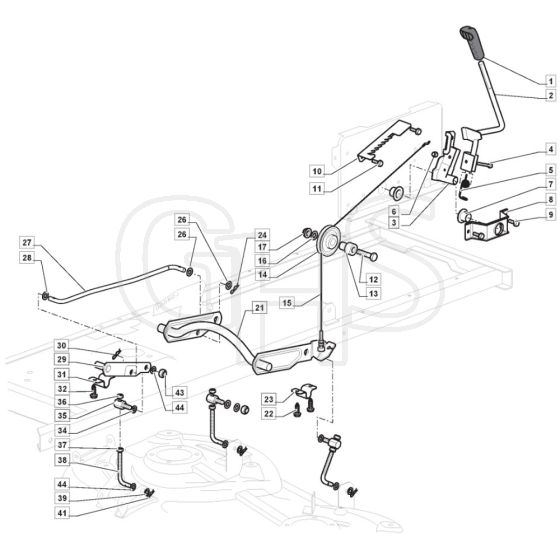

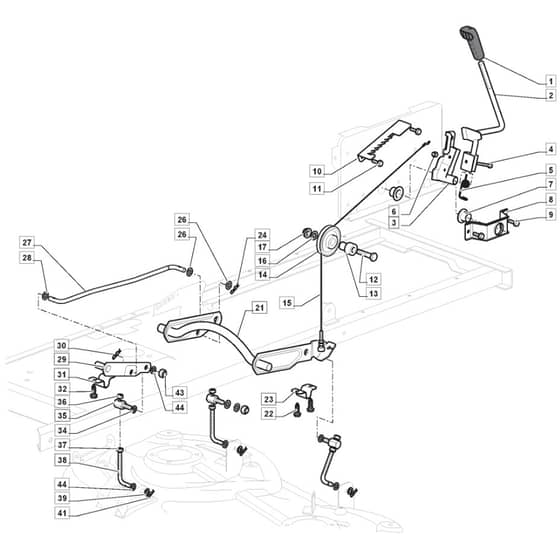

1330M - 2020-2021 - 2T2000483/M20 - Mountfield Ride On Mower Deck Lifting Diagram

Name: 1330M - 2020-2021 - 2T2000483/M20 - Mountfield Ride On Mower Deck Lifting Diagram
SKU: 1330m_2t2000483_m20_deck_lifting-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1330M - 2020-2021 - 2T2000483/M20 - Mountfield Ride On Mower Deck Lifting Diagram

Description

Mountfield 1330M Parts Diagram

Product Name - 1330M

Model Year - 2020-2021

Model Type - MPNS 84

Art.N - 2T2000483/M20

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325394533/0 Out of stock	Knob	£2.98 £2.48
2	MO382318255/0 Out of stock	Lever	£13.40 £11.17
3	MO382318231/1 Out of stock	Lifting Axle Assy	£6.77 £5.64
4	MO112674700/0 Out of stock	Screw	£1.63 £1.36
5	MO125430261/0 Out of stock	Spring	£1.36 £1.13
6	MO112154510/0 In stock	Nut	£1.63 £1.36
7	MO325038006/0 Out of stock	Bushing	£1.49 £1.24
8	MO325785297/0 Out of stock	Support	£5.96 £4.97
10	MO325735515/0 Out of stock	Steering Sector	£7.72 £6.43
11	MO125943009/0 Out of stock	Screw	£1.56 £1.30
12	MO112793701/0 Out of stock	Screw	£1.49 £1.24
13	MO125040636/1 Out of stock	Bushing	£2.70 £2.25
14	MO125601579/0 Out of stock	Pulley	£2.70 £2.25
15	MO382004620/0 In stock	Wire	£14.29 £11.91
16	MO112523060/0 In stock	Washer	£1.49 £1.24
17	MO112293201/0 In stock	Nut	£1.63 £1.36
21	MO382318297/1 Out of stock	Axle	£28.32 £23.60
22	MO112735599/0 Out of stock	Screw	£1.49 £1.24
23	MO325547231/1 Out of stock	Plate	£4.20 £3.50
24	MO124487997/0 Out of stock	Cotter Pin	£1.49 £1.24
26	MO325670010/0 Out of stock	Antifriction Washer	£1.28 £1.07
27	MO125033109/0 Out of stock	Connecting Rod	£8.64 £7.20
29	MO382318293/1 Out of stock	Axle	£11.92 £9.93
34	MO325670008/1 In stock	Washer	£1.63 £1.36
35	MO125510107/1 Out of stock	Pin To S.N 19KA3RON005043	£5.02 £4.18
35	MO125510170/0 Out of stock	Pin From S.N 19EA3RON001208	£5.15 £4.29
36	MO112156602/0 In stock	Nut	£1.36 £1.13
37	MO112295200/0 Out of stock	Nut	£1.49 £1.24
38	MO125840012/1 Out of stock	Tie Rod	£13.08 £10.90
41	MO124487998/0 In stock	Cotter Pin	£1.48 £1.23
44	MO112521360/0 In stock	Washer	£1.63 £1.36
