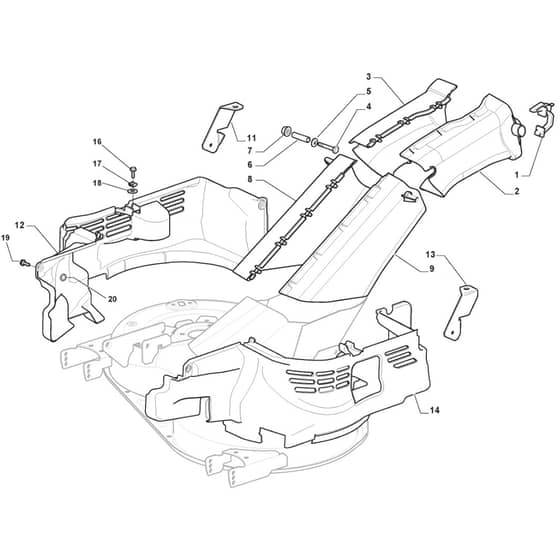

1330M - 2019 - 2T2000483/M19 - Mountfield Ride On Mower Belt Protections Diagram

Name: 1330M - 2019 - 2T2000483/M19 - Mountfield Ride On Mower Belt Protections Diagram
SKU: 1330m_2t2000483_m19_belt_protections-group
Price: 1.22 GBP
Availability: InStock

Part No. 1330m_2t2000483_m19_belt_protections-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1330M - 2019 - 2T2000483/M19 - Mountfield Ride On Mower Belt Protections Diagram

Description

Mountfield 1330M Parts Diagram

Product Name - 1330M

Model Year - 2019

Model Type - MP 84

Art.N - 2T2000483/M19

Engine Model - 7050

	Part No.	Details
1	MO325774499/0 In stock	Clamp	£2.53 £2.11
2	MO325108057/0 Available to backorder	Conveyor	£15.90 £13.25
3	MO325108056/0 Available to backorder	Conveyor	£15.97 £13.31
4	MO112792425/0 Available to backorder	Screw	£1.69 £1.41
5	MO112521340/0 Available to backorder	Washer	£1.46 £1.22
6	MO125160109/0 Available to backorder	Spacer	£1.70 £1.42
7	MO112154510/0 In stock	Nut	£1.55 £1.29
8	MO325108064/0 In stock	Conveyor	£18.43 £15.36
9	MO325108065/0 In stock	Conveyor	£18.43 £15.36
11	MO325774527/0 Available to backorder	Clamp	£3.25 £2.71
12	MO325060168/0 Available to backorder	Case	£39.42 £32.85
13	MO325774529/0 Available to backorder	Clamp	£3.66 £3.05
14	MO325060169/0 Available to backorder	Case	£35.20 £29.33
16	MO112789008/0 Available to backorder	Screw	£1.84 £1.53
17	MO112437503/0 Available to backorder	Plate	£1.97 £1.64
18	MO112523020/0 In stock	Washer	£1.55 £1.29
19	MO125943011/0 Available to backorder	Screw	£9.52 £7.93
20	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
