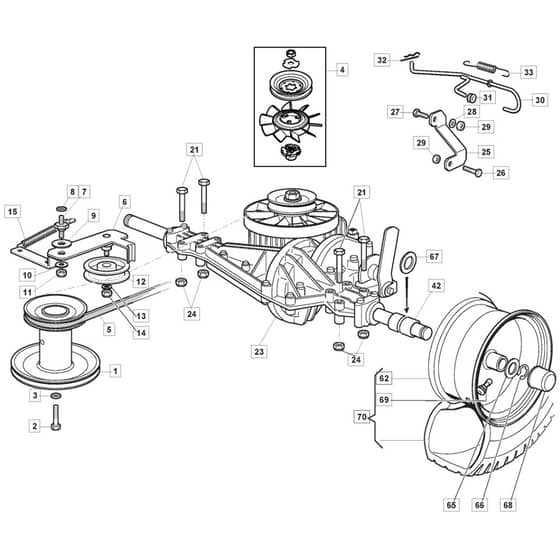

1328H - 2022 - 2T0210483/M22 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 1328H Parts Diagram

Product Name - MTF 72H

Model Year - 2022

Model Type - F 72 Hydro F.L.

Art.N - 2T0210483/M22

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127604005/0 Available to backorder	Pulley	£92.20 £76.83
2	MO112737310/0 Available to backorder	Screw	£2.95 £2.46
3	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
4	MO1139-2202-01 Available to backorder	Fan Kit	£168.92 £140.77
5	MO135061407/1 Available to backorder	Belt	£23.56 £19.63
6	MO384317067/1 Available to backorder	Lever	£17.87 £14.89
7	MO127510096/0 Available to backorder	Fulcrum Pin	£4.78 £3.98
8	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
9	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
10	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
11	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
12	MO125601554/0 In stock	Pulley	£25.68 £21.40
13	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
15	MO122446402/1 Available to backorder	Spring	£5.06 £4.22
21	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
23	MO118400976/2 Available to backorder	Transmission (Hydro-Gear T2-Bdbe-2X1A-16X1)	£751.90 £626.58
24	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
25	MO327787075/0 Available to backorder	Support	£11.75 £9.79
26	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
27	MO112793102/0 In stock	Screw	£1.55 £1.29
28	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
29	MO112155000/0 In stock	Nut	£1.55 £1.29
30	MO384002087/2 Available to backorder	Rod	£30.97 £25.81
31	MO118564512/0 Available to backorder	Fairlead	£1.40 £1.17
32	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
33	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
42	MO127160059/0 Available to backorder	Spacer	£5.64 £4.70
62	MO184044013/0 Available to backorder	Rimm Light Grey Rimm	£50.54 £42.12
62	MO184044019/0 Available to backorder	Rimm Dark Grey Rimm	£54.36 £45.30
65	MO125670005/2 In stock	Washer	£4.08 £3.40
66	MO112001010/0 Available to backorder	Benzing Ring	£1.82 £1.52
67	MO125670006/0 Available to backorder	Washer	£1.55 £1.29
68	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
69	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
70	MO384680079/0 Available to backorder	Wheel Ass.Y 15" Fe+Wa P512 Dark Grey	£101.35 £84.46
