1328H - 2018-2021 - 2T0210483/M18 - Mountfield Ride On Mower Body Diagram

Name: 1328H - 2018-2021 - 2T0210483/M18 - Mountfield Ride On Mower Body Diagram
SKU: 1328h_2t0210483_m18_body-group
Price: 1.16 GBP
Availability: InStock

Part No. 1328h_2t0210483_m18_body-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

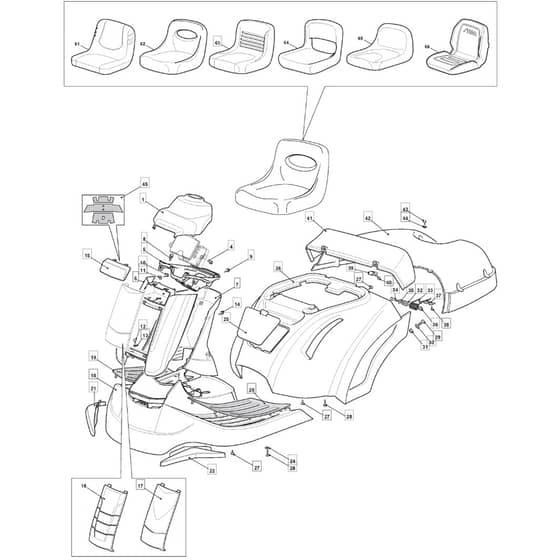

1328H - 2018-2021 - 2T0210483/M18 - Mountfield Ride On Mower Body Diagram

Description

Mountfield 1328H Parts Diagram

Product Name - 1328 H

Model Year - 2018-2021

Model Type - F 72 Hydro F.L.

Art.N - 2T0210483/M18

Engine Model - ST 350

	Part No.	Details
1	MO327109535/0 Available to backorder	Dashboard Cover Black	£35.20 £29.33
5	MO327787084/0 Available to backorder	Lights And Card Support	£18.94 £15.78
6	MO327787114/0 Available to backorder	Front Dashboard Support. Green	£40.82 £34.02
6	MO327787119/0 Available to backorder	Front Dashboard Support. Red Dark Red	£46.48 £38.73
7	MO327787104/0 Available to backorder	Rear Dashboard Support. Green	£43.63 £36.36
7	MO327787120/0 Available to backorder	Rear Dashboard Support. Red Dark Red	£49.26 £41.05
8	MO125943010/0 In stock	Screw	£1.97 £1.64
9	MO112735403/0 In stock	Screw	£1.55 £1.29
15	MO325410913/0 Available to backorder	Grill	£11.26 £9.38
17	MO327110477/0 Available to backorder	Front Cover. Grey	£17.87 £14.89
17	MO327110475/0 Available to backorder	Front Cover. Black	£16.48 £13.73
18	MO327110574/0 Available to backorder	Footboard Cover. Red Dark Red	£146.42 £122.02
19	MO127110304/0 Available to backorder	Right Footboard Cover	£9.86 £8.22
20	MO127110305/1 Available to backorder	Left Footboard Cover	£9.86 £8.22
21	MO327110501/0 Available to backorder	Black Wheels Cover. Right	£7.39 £6.16
22	MO327110502/0 Available to backorder	Black Wheels Cover. Left	£8.59 £7.16
25	MO327109536/0 Available to backorder	Front Cover. Red Dark Red	£10.21 £8.51
26	MO384110170/0 Available to backorder	Red Wheels Cover Dark Red	£211.15 £175.96
28	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
29	MO112791213/1 In stock	Screw From 01-9-2013	£1.55 £1.29
29	MO112791200/1 In stock	Screw To 31-8-2013	£1.55 £1.29
30	MO112523040/0 In stock	Washer	£1.55 £1.29
31	MO112154510/0 In stock	Nut	£1.55 £1.29
32	MO127047003/0 Available to backorder	Bushing	£1.70 £1.42
33	MO127430551/1 Available to backorder	Spring	£2.82 £2.35
34	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
35	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
36	MO112155000/0 In stock	Nut	£1.55 £1.29
37	MO327546001/0 Available to backorder	Plate	£1.39 £1.16
39	MO327546003/0 Available to backorder	Plate	£1.63 £1.36
40	MO112735406/0 Available to backorder	Screw From 01-9-2014	£1.63 £1.36
40	MO112735402/0 In stock	Screw To 31-8-2014	£1.55 £1.29
41	MO327110575/0 Available to backorder	Red Grass-Catcher Cover. Fixed Dark Red	£43.64 £36.37
42	MO327110576/0 Available to backorder	Grass-Catcher Cover. Mobile Red Dark Red	£66.16 £55.13
43	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
44	MO112521331/0 Available to backorder	Washer To 31-8-2014	£1.55 £1.29
44	MO112523020/0 In stock	Washer From 01-9-2014	£1.55 £1.29
45	MO114366202/0 Available to backorder	Light Label	£4.24 £3.53
63	MO125722471/0 In stock	Seat [Mountfield]	£190.04 £158.37
