1328H - 2015-2017 - 2T0210483/M15 - Mountfield Ride On Mower Engine Diagram

Description

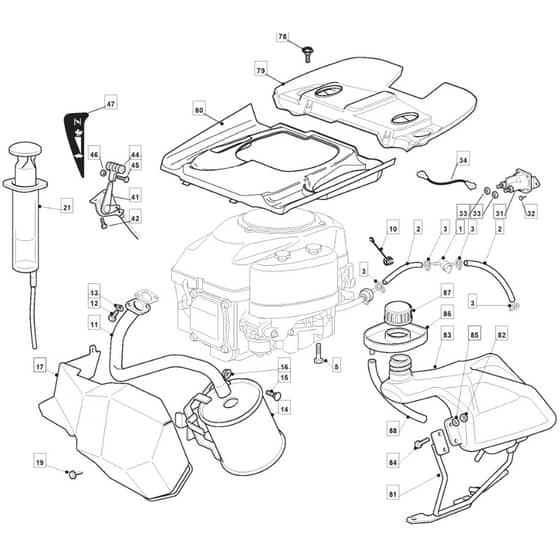

Mountfield 1328H Parts Diagram

Product Name - 1328 H

Model Year - 2015-2017

Model Type - F 72 Hydro F.L.

Art.N - 2T0210483/M15

Engine Model - 7250 414cc

	Part No.	Details
1	MO118566119/0 Available to backorder	Shut Out Valve	£14.64 £12.20
2	MO325869035/1 Available to backorder	Connecting Tube	£9.42 £7.85
3	MO118375062/0 Available to backorder	Fair Led	£1.92 £1.60
5	MO112735108/1 In stock	Screw	£2.11 £1.76
10	MO125430239/1 Available to backorder	Spring	£1.97 £1.64
11	MO118738240/0 Available to backorder	Exhaust Pipe	£56.05 £46.71
12	MO112737450/0 Available to backorder	Screw	£3.79 £3.16
13	MO112583500/0 In stock	Grower	£1.55 £1.29
14	MO118716133/0 Available to backorder	Muffler	£147.79 £123.16
15	MO112815210/0 Available to backorder	Screw	£1.63 £1.36
16	MO112292102/0 In stock	Nut	£1.70 £1.42
17	MO384598093/1 Available to backorder	Muffler Protection From 01-4-2021	£72.50 £60.42
17	MO384598093/0 Available to backorder	Muffler Protection To 31-3-2021	£118.26 £98.55
19	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
21	MO118718000/0 Available to backorder	Oil Emptying Syringe	£15.90 £13.25
31	MO118736113/0 In stock	Starter Relay	£38.00 £31.67
32	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
33	MO112361005/0 Available to backorder	Nut From 01-9-2015	£4.24 £3.53
33	MO9743-5121-32 Available to backorder	Nut To 31-8-2015	£1.46 £1.22
34	MO127065050/0 Available to backorder	Cable	£6.32 £5.27
41	MO184000250/1 Available to backorder	Accelerator	£30.98 £25.82
42	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
44	MO125394501/0 Available to backorder	Knob	£1.55 £1.29
45	MO112726389/0 Available to backorder	Screw	£1.55 £1.29
46	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
47	MO114363697/0 Available to backorder	Label	£1.55 £1.29
78	MO125943010/0 In stock	Screw	£1.97 £1.64
79	MO327110515/0 Available to backorder	Black Seat Switch Cover	£12.18 £10.15
80	MO327110505/0 Available to backorder	Engine Cover	£20.14 £16.78
81	MO384783049/0 Available to backorder	Support	£99.95 £83.29
82	MO112154510/0 In stock	Nut	£1.55 £1.29
83	MO327733007/0 Available to backorder	Fuel Tank	£73.20 £61.00
84	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
85	MO112521331/0 Available to backorder	Washer To 31-8-2014	£1.55 £1.29
85	MO112523020/0 In stock	Washer From 01-9-2014	£1.55 £1.29
86	MO327600061/2 Available to backorder	Guard	£3.66 £3.05
87	MO125795000/1 In stock	Fuel Cap	£7.74 £6.45
88	MO325869014/1 Available to backorder	Fuel Pipe L.410	£7.62 £6.35
