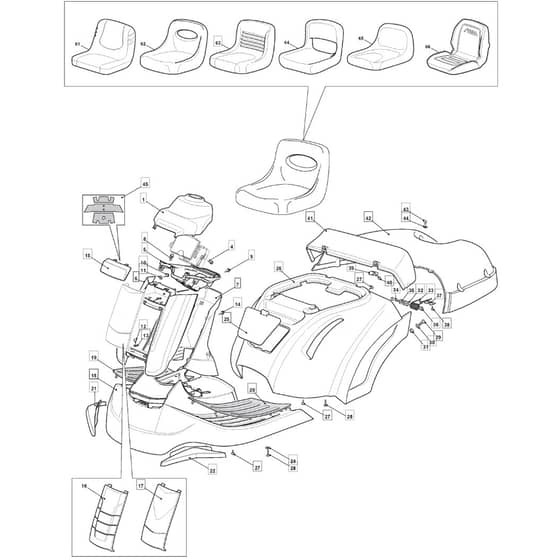

1328H - 2015-2017 - 2T0210483/M15 - Mountfield Ride On Mower Body Diagram

Name: 1328H - 2015-2017 - 2T0210483/M15 - Mountfield Ride On Mower Body Diagram
SKU: 1328h_2t0210483_m15_body-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1328H - 2015-2017 - 2T0210483/M15 - Mountfield Ride On Mower Body Diagram

Description

Mountfield 1328H Parts Diagram

Product Name - 1328 H

Model Year - 2015-2017

Model Type - F 72 Hydro F.L.

Art.N - 2T0210483/M15

Engine Model - 7250 414cc

Be the first to review this product

0 product questions

	Part No.	Details
1	MO327109535/0 Available to backorder	Dashboard Cover Black	£35.20 £29.33
5	MO327787084/0 Available to backorder	Lights And Card Support	£18.94 £15.78
6	MO327787119/0 Available to backorder	Front Dashboard Support. Red Dark Red	£46.46 £38.72
6	MO327787083/1 Available to backorder	Front Dashboard Support	£40.82 £34.02
6	MO327787114/0 Available to backorder	Front Dashboard Support. Green	£40.82 £34.02
7	MO327787082/1 Available to backorder	Rear Dashboard Support	£43.64 £36.37
7	MO327787104/0 Available to backorder	Rear Dashboard Support. Green	£43.64 £36.37
7	MO327787120/0 Available to backorder	Rear Dashboard Support. Red Dark Red	£49.26 £41.05
8	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
9	MO112735403/0 Available to backorder	Screw	£1.55 £1.29
15	MO325410913/0 Available to backorder	Grill	£10.85 £9.04
17	MO327110475/0 Available to backorder	Front Cover. Black	£16.46 £13.72
17	MO327110477/0 Available to backorder	Front Cover. Grey	£17.87 £14.89
18	MO327110410/2 Available to backorder	Footboard Cover	£132.06 £110.05
18	MO327110574/0 Available to backorder	Footboard Cover. Red Dark Red	£146.41 £122.01
19	MO127110304/0 Available to backorder	Right Footboard Cover	£9.85 £8.21
20	MO127110305/1 Available to backorder	Left Footboard Cover	£9.85 £8.21
21	MO327110501/0 Available to backorder	Black Wheels Cover. Right	£7.39 £6.16
22	MO327110502/0 Available to backorder	Black Wheels Cover. Left	£8.59 £7.16
25	MO327109501/2 In stock	Front Cover	£11.82 £9.85
25	MO327109536/0 Available to backorder	Front Cover. Red Dark Red	£10.20 £8.50
26	MO384110170/0 Available to backorder	Red Wheels Cover Dark Red	£211.16 £175.97
28	MO112735410/0 Available to backorder	Screw	£1.55 £1.29
29	MO112791200/1 Available to backorder	Screw To 31-8-2013	£1.34 £1.12
29	MO112791213/1 In stock	Screw From 01-9-2013	£1.55 £1.29
30	MO112523040/0 In stock	Washer	£1.49 £1.24
31	MO112154510/0 In stock	Nut	£1.55 £1.29
32	MO127047003/0 Available to backorder	Bushing	£1.69 £1.41
33	MO127430551/1 Available to backorder	Spring	£2.81 £2.34
34	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
35	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
36	MO112155000/0 In stock	Nut	£1.55 £1.29
37	MO327546001/0 Available to backorder	Plate	£1.40 £1.17
39	MO327546003/0 Available to backorder	Plate	£1.55 £1.29
40	MO112735402/0 Available to backorder	Screw To 31-8-2014	£1.55 £1.29
40	MO112735406/0 Available to backorder	Screw From 01-9-2014	£1.55 £1.29
41	MO327110575/0 Available to backorder	Red Grass-Catcher Cover. Fixed Dark Red	£43.64 £36.37
41	MO327110302/3 Available to backorder	Red Grass-Catcher Cover	£43.33 £36.11
42	MO327110303/2 Available to backorder	Grass-Catcher Cover	£76.02 £63.35
42	MO327110576/0 Available to backorder	Grass-Catcher Cover. Mobile Red Dark Red	£66.16 £55.13
43	MO112729601/1 Available to backorder	Screw	£1.48 £1.23
44	MO112523020/0 In stock	Washer From 01-9-2014	£1.55 £1.29
44	MO112521331/0 Available to backorder	Washer To 31-8-2014	£1.55 £1.29
45	MO114366202/0 Available to backorder	Light Label	£4.22 £3.52
63	MO125722471/0 In stock	Seat [Mountfield]	£190.04 £158.37
