1235M - 2007 - 13-2687-12 - Mountfield Ride On Mower Options Diagram

Description

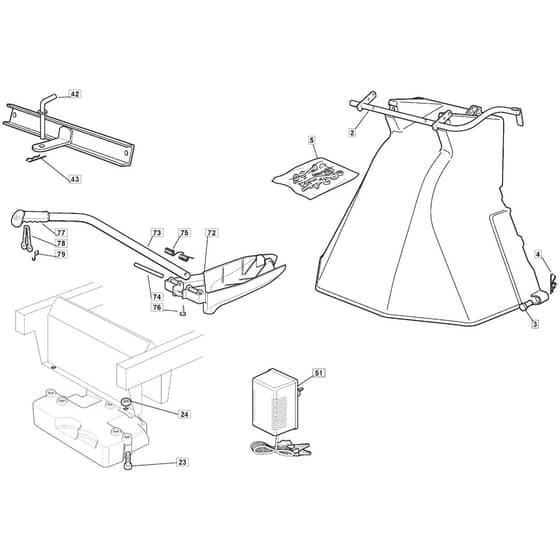

Mountfield 1235M Parts Diagram

Product Name - 1235 M

Model Year - 2007

Model Type - NJ 92

Art.N - 13-2687-12

	Part No.	Details
1	MO382869035/0 Available to backorder	Stone Guard Tube	£39.42 £32.85
3	MO125510022/1 In stock	Pin	£3.10 £2.58
4	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
23	MO112760520/0 Available to backorder	Screw	£1.55 £1.29
24	MO112155000/0 In stock	Nut	£1.55 £1.29
42	MO125510021/1 In stock	Hitch Pin	£11.10 £9.25
43	MO124487999/0 Available to backorder	Spring Pin	£1.84 £1.53
51	MO1134-9250-01 In stock	Battery Charger	£60.08 £50.07
72	MO325140093/0 Available to backorder	Deflector	£30.98 £25.82
73	MO325394007/0 Available to backorder	Handle	£22.81 £19.01
74	MO125510077/0 In stock	Pin	£3.38 £2.82
75	MO125430245/0 In stock	Spring	£3.52 £2.93
76	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
77	MO325280000/1 In stock	Handgrip	£3.10 £2.58
78	MO125840011/1 In stock	Tie Rod	£7.18 £5.98
79	MO125253004/0 In stock	Fixing Hook	£1.55 £1.29
