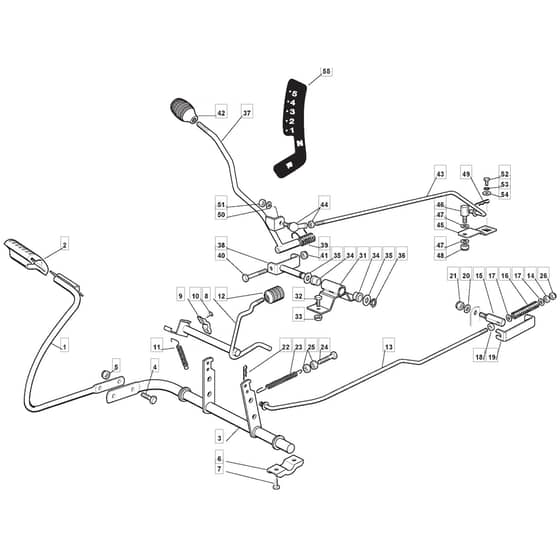

1228M - 2007 - 13-2641-17 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 1228M Parts Diagram

Product Name - 1228 M

Model Year - 2007

Model Type - F 73

Art.N - 13-2641-17

	Part No.	Details
1	MO384503001/0 Available to backorder	Pedal	£23.65 £19.71
2	MO125110269/0 Available to backorder	Clamp Cover	£3.66 £3.05
3	MO384001015/1 Available to backorder	Axle	£46.48 £38.73
4	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
7	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
8	MO384001011/2 Available to backorder	Axle	£12.94 £10.78
9	MO325547049/0 Available to backorder	Plate	£3.10 £2.58
10	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
11	MO127430552/0 Available to backorder	Spring	£1.55 £1.29
12	MO127395050/1 Available to backorder	Knob	£2.94 £2.45
13	MO127034060/0 Available to backorder	Rod	£32.32 £26.93
15	MO127510115/0 Available to backorder	Pin	£7.74 £6.45
16	MO125430236/1 Available to backorder	Spring	£1.55 £1.29
17	MO112521350/0 In stock	Washer	£1.55 £1.29
18	MO122171001/0 Available to backorder	Spacer	£1.97 £1.64
20	MO112523050/0 In stock	Washer	£1.57 £1.31
21	MO112154510/0 In stock	Nut	£1.55 £1.29
33	MO112293201/0 In stock	Nut	£1.70 £1.42
35	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
36	MO112608600/0 In stock	Seeger	£1.55 £1.29
38	MO384773553/0 Available to backorder	Clamp	£14.93 £12.44
40	MO112692050/0 In stock	Screw	£1.84 £1.53
50	MO112583500/0 In stock	Grower	£1.55 £1.29
51	MO112293200/0 In stock	Nut	£1.55 £1.29
52	MO112735520/0 Available to backorder	Screw	£1.55 £1.29
53	MO112540040/0 Available to backorder	Washer	£1.39 £1.16
55	MO114357426/0 Available to backorder	Gear Decal	£1.97 £1.64
