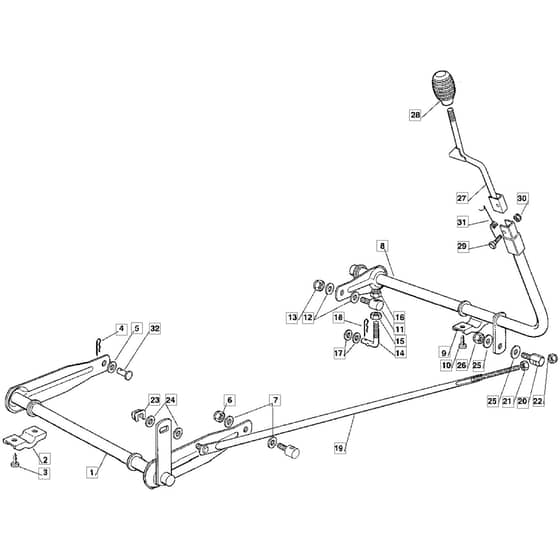

1228M - 2006 - 13-2641-16 - Mountfield Ride On Mower Deck Lifting Diagram

Name: 1228M - 2006 - 13-2641-16 - Mountfield Ride On Mower Deck Lifting Diagram
SKU: 1228m_13_2641_16_deck_lifting-group
Price: 1.16 GBP
Availability: InStock

Part No. 1228m_13_2641_16_deck_lifting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1228M - 2006 - 13-2641-16 - Mountfield Ride On Mower Deck Lifting Diagram

Description

Mountfield 1228M Parts Diagram

Product Name - 1228 M

Model Year - 2006

Model Type - F 73

Art.N - 13-2641-16

	Part No.	Details
1	MO384001025/0 Available to backorder	Lifting Axle	£42.22 £35.18
3	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
4	MO124487997/0 In stock	Hair Pin	£1.55 £1.29
6	MO112156602/0 In stock	Nut	£1.39 £1.16
7	MO325670008/1 In stock	Washer	£1.55 £1.29
8	MO384001005/2 Available to backorder	Lifting Axle	£33.79 £28.16
9	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
11	MO125510007/2 Available to backorder	Pivot Bolt	£5.65 £4.71
14	MO125840003/2 Available to backorder	Tie Rod	£12.40 £10.33
15	MO112295200/0 In stock	Nut	£1.39 £1.16
17	MO322672150/0 Available to backorder	Washer	£1.92 £1.60
19	MO184002051/0 Available to backorder	Lift Rod	£21.28 £17.73
20	MO125510040/2 Available to backorder	Pivot Bolt	£5.76 £4.80
21	MO112293200/0 In stock	Nut	£1.55 £1.29
23	MO112436050/0 In stock	Plate	£1.84 £1.53
25	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
26	MO112155000/0 In stock	Nut	£1.55 £1.29
27	MO384317065/1 Available to backorder	Lift Lever	£15.49 £12.91
28	MO125394510/0 In stock	Knob	£4.24 £3.53
29	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
30	MO112154510/0 In stock	Nut	£1.55 £1.29
31	MO127430555/0 Available to backorder	Spring	£2.94 £2.45
32	MO127510114/0 Available to backorder	Pin	£8.72 £7.27
