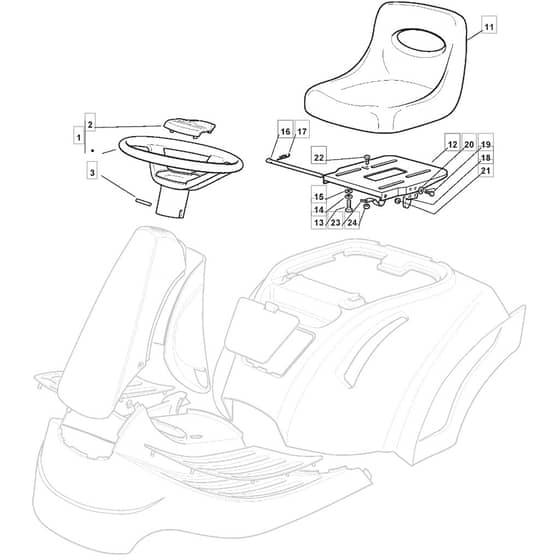

1228M - 2004-2007 - 299981133/MOE - Mountfield Ride On Mower Seat Diagram

Name: 1228M - 2004-2007 - 299981133/MOE - Mountfield Ride On Mower Seat Diagram
SKU: 1228m_299981133_moe_seat-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1228M - 2004-2007 - 299981133/MOE - Mountfield Ride On Mower Seat Diagram

Description

Mountfield 1228M Parts Diagram

Product Name - 1228 M

Model Year - 2004-2007

Model Type - F 73

Art.N - 299981133/MOE

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125961216/1 Available to backorder	Steering Wheel	£54.61 £45.51
2	MO325580501/0 Available to backorder	Cap	£7.62 £6.35
3	MO112620299/0 Available to backorder	Elastic Pin	£1.82 £1.52
11	MO125722463/0 Available to backorder	Seat	£204.12 £170.10
12	MO325547033/1 Available to backorder	Seat Plate To 31-8-2014	£33.02 £27.52
12	MO325547033/2 Available to backorder	Seat Plate From 01-9-2014	£39.42 £32.85
13	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
14	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
15	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
16	MO127864052/1 Available to backorder	Seat Fulcrum Rod	£6.62 £5.52
17	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
18	MO327063021/1 Available to backorder	Cam	£7.85 £6.54
19	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
20	MO112523020/0 In stock	Washer	£1.55 £1.29
22	MO125430223/2 Available to backorder	Spring From 01-9-2003	£6.20 £5.17
23	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
24	MO112154330/0 In stock	Low Self-Locking Nut M5 Uni7474 Acc.6S	£1.55 £1.29
